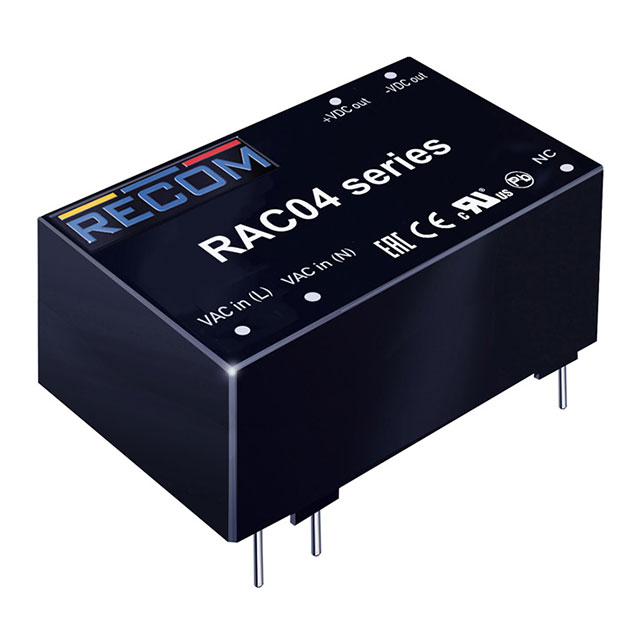

RAC04-24SC

Obsolete

RECOM Power

AC/DC CONVERTER 24V 4W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

RAC04-24SC

Obsolete

RECOM Power

AC/DC CONVERTER 24V 4W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	RAC04-24SC

Applications	ITE (Commercial)
Approval Agency	cULus, CE
Current - Output (Max) [Max]	167 mA
Efficiency	77 %
Features	Universal Input
Line Regulation	0.5 %
Load Regulation	1.5 %
Mounting Type	Through Hole
Number of Outputs	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Package / Case	16-DIP Module, 5 Leads
Power (Watts)	4 W
Size / Dimension [x]	37.8 mm
Size / Dimension [x]	1.49 in
Size / Dimension [y]	0.94 in
Size / Dimension [y]	23.9 mm
Size / Dimension [z]	16.4 mm
Size / Dimension [z]	0.65 in
Standard Number	60950-1
Type	Enclosed
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	80 VAC
Voltage - Output 1	24 V
Weight	29.94 g
Weight	0.066 lb

RAC04-S_DC/230 Series

AC/DC Power Modules 4W +/-12V 166mA 80-264VIN

Part	Power (Watts)	Approval Agency	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Weight	Weight	Load Regulation	Package / Case	Voltage - Input [Max]	Voltage - Input [Min]	Features	Applications	Type	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Line Regulation	Efficiency	Voltage - Output 1	Current - Output (Max) [Max]	Number of Outputs	Standard Number	Line Regulation	Size / Dimension [z]	Size / Dimension [y]
RECOM Power RAC04-24SC/230	4 W	CE cULus	Through Hole	-40 °C	80 ¯C	0.069 lb	31.3 g	0.5 %	7-DIP Module 6 Leads	264 VAC	80 VAC	SCP	ITE (Commercial)	Enclosed	0.67 in	1.44 "	36.7 mm	1.07 in	27.2 mm	17.1 mm	±0.2%	79 %	24 V	167 mA	1
RECOM Power RAC04-24SC	4 W	CE cULus	Through Hole	-25 °C	85 °C	0.066 lb	29.94 g	1.5 %	16-DIP Module 5 Leads	264 VAC	80 VAC	Universal Input	ITE (Commercial)	Enclosed	0.65 in	1.49 in	37.8 mm	0.94 in	23.9 mm	16.4 mm		77 %	24 V	167 mA	1	60950-1	0.5 %
RECOM Power RAC04-24SGB	4 W	CE cURus	Through Hole	-40 °C	85 °C	0.044 lb	19.96 g	0.5 %	16-DIP Module 5 Leads	305 VAC	85 VAC		Household Appliances ITE (Commercial)	Enclosed	0.59 in	1.46 in	37 mm	0.94 in				80 %	24 V	170 mA	1		0.5 %	15 mm	24 mm
RECOM Power RAC04-24SC/277	4 W	CE EN UL	Through Hole	-25 °C	80 ¯C	0.069 lb	31.3 g	0.5 %	7-DIP Module 6 Leads	305 VAC	80 VAC	SCP	ITE (Commercial)	Enclosed	0.67 in	1.44 "	36.7 mm	1.07 in	27.2 mm	17.1 mm		79 %	24 V	167 mA	1		2 %
RECOM Power RAC04-24SC/277-E	4 W	CB CE cURus	Through Hole	-40 °C	80 ¯C	0.091 lb	41.28 g	0.5 %	7-DIP Module 6 Leads	305 VAC	80 VAC	SCP	ITE (Commercial)	Enclosed	0.67 in	1.44 "	36.7 mm	1.07 in	27.2 mm	17.1 mm	±0.2%	79 %	24 V	167 mA	1

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 17.63

Description

General part information

RAC04-S_DC/230 Series

AC/DC Power Modules 4W +/-12V 166mA 80-264VIN
