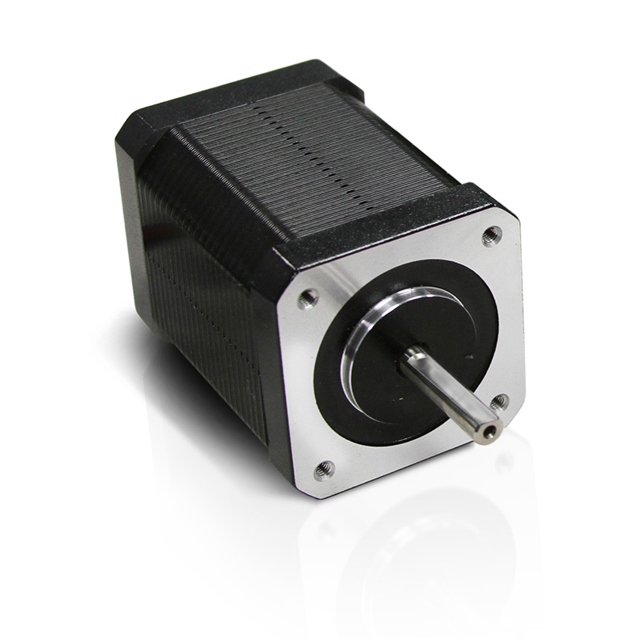

WO-4118C-01
ActiveLIN ENGINEERING
STEPPER MOTOR
Deep-Dive with AI
Search across all available documentation for this part.
WO-4118C-01
ActiveLIN ENGINEERING
STEPPER MOTOR
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | WO-4118C-01 |
|---|---|
| Coil Resistance | 2 Ohms |
| Coil Type | Bipolar |
| Current Rating (Amps) | 2 A |
| Diameter - Shaft [diameter] | 0.197 in |
| Diameter - Shaft [diameter] | 5 mm |
| Features | Flatted Shaft |
| Length - Shaft and Bearing [x] | 24 mm |
| Length - Shaft and Bearing [x] | 0.945 in |
| Mounting Hole Spacing | 1.22 in |
| Mounting Hole Spacing | 31 mm |
| NEMA Frame Size | 17 |
| Operating Temperature [Max] | 50 °C |
| Operating Temperature [Min] | -20 C |
| Size / Dimension [x] | 42.4 mm |
| Size / Dimension [x] | 1.669 in |
| Size / Dimension [y] | 42.4 mm |
| Size / Dimension [y] | 1.669 in |
| Step Angle | 1.8 ° |
| Steps per Revolution | 200 |
| Termination Style | Wire Leads |
| Torque - Holding (oz-in / mNm) | 812.1 mNm |
| Torque - Holding (oz-in / mNm) | 115 oz-in |
| Voltage - Rated | 24 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 73.58 | |
| 5 | $ 67.62 | |||
| 10 | $ 65.20 | |||
| 32 | $ 61.34 | |||
| 64 | $ 59.15 | |||
| 128 | $ 57.96 | |||
Description
General part information
WO-4118C Series
Bipolar Stepper Motor Frame Size 17 200.0 Step 2 A 24VDC
