Q-0301N0003024i

Active

Amphenol Custom Cable

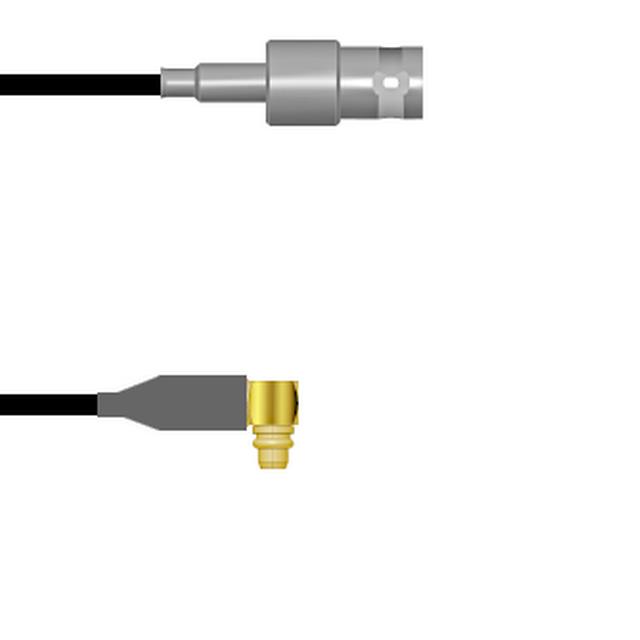

CBL ASSY BNC-MMCX JACK-PLUG 24"

Deep-Dive with AI

Search across all available documentation for this part.

Q-0301N0003024i

Active

Amphenol Custom Cable

CBL ASSY BNC-MMCX JACK-PLUG 24"

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-0301N0003024i

1st Connector	BNC Jack
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Female
2nd Connector	MMCX Plug, Right Angle
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Male
Cable Type	RG-174
Color	Black
Features	Shielded
Frequency - Max [Max]	4 GHz
Length	24 "
Length	609.6 mm
Overall Impedance	50 Ohms
Style	BNC to MMCX

Q-0301N0 Series

Part	1st Connector Mounting Type	Features	Cable Type	Color	1st Contact Gender	2nd Contact Gender	1st Connector	Overall Impedance	Style	Length	Length	2nd Connector	2nd Connector Mounting Type	Frequency - Max [Max]	Length	Length [x]	Length [x]
Amphenol Custom Cable Q-0301N0003009i	Free Hanging (In-Line)	Shielded	RG-174	Black	Female	Male	BNC Jack	50 Ohms	BNC to MMCX	9 "	228.6 mm	MMCX Plug Right Angle	Free Hanging (In-Line)	4 GHz
Amphenol Custom Cable Q-0301N0005048i	Free Hanging (In-Line)	Shielded	RG-316	Copper	Female	Male	BNC Jack	50 Ohms	BNC to MMCX	48 in	1200 mm	MMCX Plug Right Angle	Free Hanging (In-Line)	4 GHz	4 ft
Amphenol Custom Cable Q-0301N0005072i	Free Hanging (In-Line)	Shielded	RG-316	Copper	Female	Male	BNC Jack	50 Ohms	BNC to MMCX	72 in	1.8 m	MMCX Plug Right Angle	Free Hanging (In-Line)	4 GHz	6 ft
Amphenol Custom Cable Q-0301N0003108i	Free Hanging (In-Line)	Shielded	RG-174	Black	Female	Male	BNC Jack	50 Ohms	BNC to MMCX	108 in	2.7 m	MMCX Plug Right Angle	Free Hanging (In-Line)	4 GHz	9 ft
Amphenol Custom Cable Q-0301N0003.75M	Free Hanging (In-Line)	Shielded	RG-174	Black	Female	Male	BNC Jack	50 Ohms	BNC to MMCX	29.53 "	750 mm	MMCX Plug Right Angle	Free Hanging (In-Line)	4 GHz
Amphenol Custom Cable Q-0301N0003018i	Free Hanging (In-Line)	Shielded	RG-174	Black	Female	Male	BNC Jack	50 Ohms	BNC to MMCX			MMCX Plug Right Angle	Free Hanging (In-Line)	4 GHz		457.2 mm	457.2 mm
Amphenol Custom Cable Q-0301N0005002M	Free Hanging (In-Line)	Shielded	RG-316	Copper	Female	Male	BNC Jack	50 Ohms	BNC to MMCX	78.7 in	2 m	MMCX Plug Right Angle	Free Hanging (In-Line)	4 GHz	6.6 ft
Amphenol Custom Cable Q-0301N00030.5M	Free Hanging (In-Line)	Shielded	RG-174	Black	Female	Male	BNC Jack	50 Ohms	BNC to MMCX	19.69 "	50 cm	MMCX Plug Right Angle	Free Hanging (In-Line)	4 GHz
Amphenol Custom Cable Q-0301N0003024i	Free Hanging (In-Line)	Shielded	RG-174	Black	Female	Male	BNC Jack	50 Ohms	BNC to MMCX	24 "	609.6 mm	MMCX Plug Right Angle	Free Hanging (In-Line)	4 GHz
Amphenol Custom Cable Q-0301N00032.5M	Free Hanging (In-Line)	Shielded	RG-174	Black	Female	Male	BNC Jack	50 Ohms	BNC to MMCX	98.4 in	2.5 m	MMCX Plug Right Angle	Free Hanging (In-Line)	4 GHz	8.2 '

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 71.44
		25	$ 70.04
		50	$ 68.64
		100	$ 67.24
		250	$ 65.83

Description

General part information

Q-0301N0 Series

Cable Assembly Coaxial BNC to MMCX RG-174 24.00" (609.60mm)

Documents

Technical documentation and resources

No documents available
