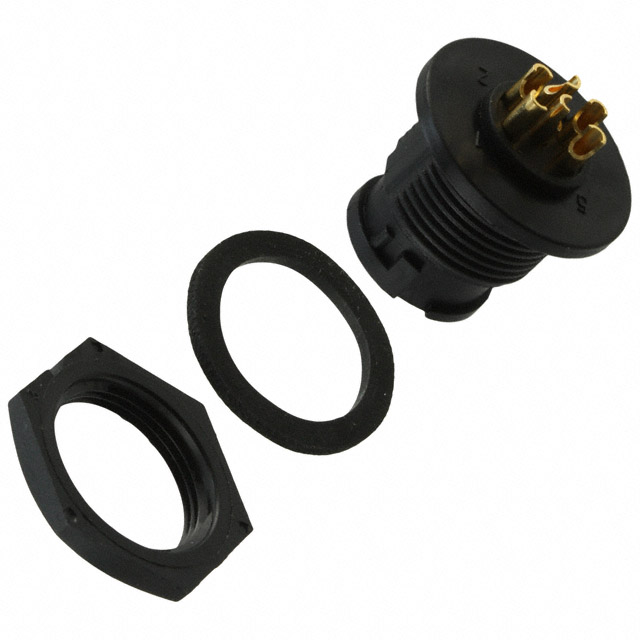

7282-6PG-300

Active

Conxall/Switchcraft

CONN RCPT MALE 6P GOLD SLDR CUP

Search across all available documentation for this part.

Active

Conxall/Switchcraft

CONN RCPT MALE 6P GOLD SLDR CUP

Technical Specifications

Parameters and characteristics for this part

Specification	7282-6PG-300

Applications	Automotive, Communication Systems, Instrumentation
Backshell Material, Plating	Polyamide (PA), Nylon
Color	Black
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Gold
Contact Material	Brass
Current Rating (Amps)	Varies by Wire Gauge
Fastening Type	Bayonet Lock
Ingress Protection	Weathertight
Mounting Feature	Bulkhead - Front Side Nut
Number of Positions	6
Operating Temperature [Max]	115 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Plastic
Shielding	Unshielded
Voltage Rating	600 V

Part	Mounting Feature	Backshell Material, Plating	Number of Positions	Shielding	Color	Primary Material	Applications	Orientation	Ingress Protection	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Fastening Type	Current Rating (Amps)	Voltage Rating	Contact Material	Contact Finish - Mating
Conxall/Switchcraft 7282-6PG-3ES	Bulkhead - Front Side Nut	Nylon Polyamide (PA)	6	Unshielded	Black	Plastic	Automotive Communication Systems Instrumentation	Keyed	Weathertight	-40 °C	115 °C	Male Pins Receptacle	Bayonet Lock	Varies by Wire Gauge	600 V	Brass	Gold
Conxall/Switchcraft 7282-6PG-300	Bulkhead - Front Side Nut	Nylon Polyamide (PA)	6	Unshielded	Black	Plastic	Automotive Communication Systems Instrumentation	Keyed	Weathertight	-40 °C	115 °C	Male Pins Receptacle	Bayonet Lock	Varies by Wire Gauge	600 V	Brass	Gold
