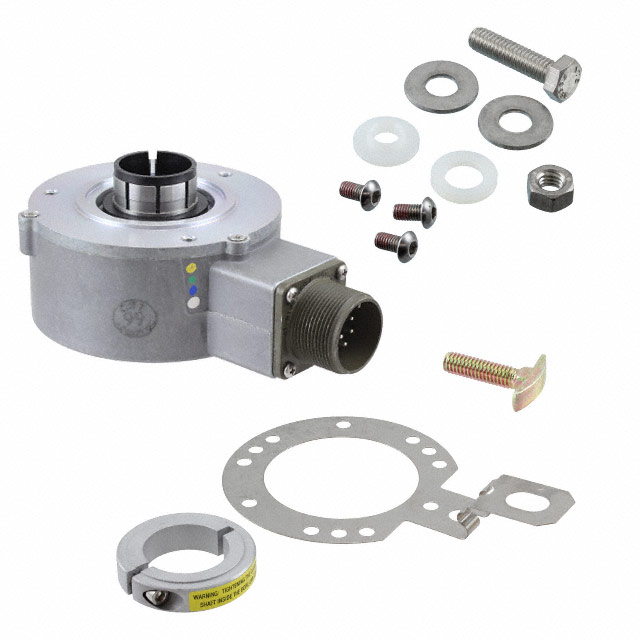

01080-008

Active

Sensata-BEI Sensors

ROTARY ENCODER ABSOLUTE 4096PPR

Search across all available documentation for this part.

Active

Sensata-BEI Sensors

ROTARY ENCODER ABSOLUTE 4096PPR

Technical Specifications

Parameters and characteristics for this part

Specification	01080-008

Actuator Type	Hole for Shaft
Built in Switch	False
Detent	False
Encoder Type	Absolute
Mounting Type	Chassis Mount
Orientation	User Selectable
Output Type	Gray Code (Absolute)
Pulses per Revolution	4096
Rotational Life (Cycles Min) [Min]	7.5B
Termination Style	Connector
Voltage - Supply [Max]	28 V
Voltage - Supply [Min]	5 V

Part	Orientation	Mounting Type	Termination Style	Voltage - Supply [Min]	Voltage - Supply [Max]	Encoder Type	Pulses per Revolution	Rotational Life (Cycles Min) [Min]	Output Type	Actuator Type
Sensata-BEI Sensors 01080-057	User Selectable	Chassis Mount Motors	Connector	5 V	28 V	Optical	12 pulses per revolution	7.5B	Gray Code (Absolute)	Hole for Shaft
Sensata-BEI Sensors 01080-072	User Selectable	Chassis Mount Motors	Connector	5 V	28 V	Optical	13	7.5B	Gray Code (Absolute)	Hole for Shaft
Sensata-BEI Sensors 01080-008	User Selectable	Chassis Mount	Connector	5 V	28 V	Absolute	4096	7.5B	Gray Code (Absolute)	Hole for Shaft
Sensata-BEI Sensors 01080-084	User Selectable	Chassis Mount	Connector	5 V	28 V	Absolute	4096	7.5B		Hole for Shaft

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

ROTARY ENCODER ABSOLUTE 4096PPR

Technical documentation and resources

No documents available
