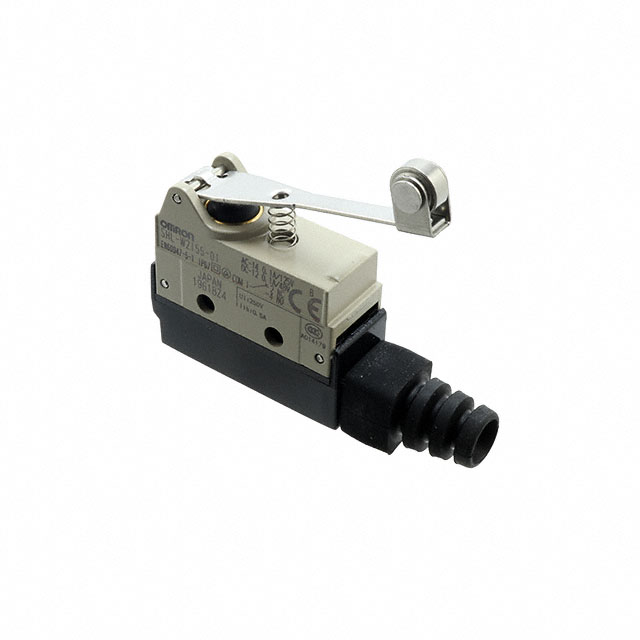

SHL-W2155-01
ActiveOmron Electronics Inc-EMC Div
SWITCH SNAP ACT SPDT 0.1A 125V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SHL-W2155-01
ActiveOmron Electronics Inc-EMC Div
SWITCH SNAP ACT SPDT 0.1A 125V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SHL-W2155-01 |
|---|---|
| Actuator Type | Roller, Lever |
| Circuit | SPDT |
| Current Rating (Amps) | 100 mA |
| Differential Travel | 4 mm |
| Differential Travel | 0.156 in |
| Electrical Life | 500000 Cycles |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Mechanical Life | 10000000 Cycles |
| Mounting Type | Chassis Mount |
| Operating Force | 260 gf |
| Operating Position | 1.319 in |
| Operating Position | 33.5 mm |
| Operating Temperature [Max] | 80 C |
| Operating Temperature [Min] | -10 °C |
| Overtravel | 0.217 " |
| Overtravel | 5.5 mm |
| Pretravel | 13 mm |
| Pretravel | 0.512 " |
| Release Force | 50 gf |
| Switch Function | On-Mom |
| Termination Style | Screw Terminal |
| Voltage Rating - AC | 125 V |
| Voltage Rating - DC | 30 V |
