8815-0.5-5

Active

3M (TC)

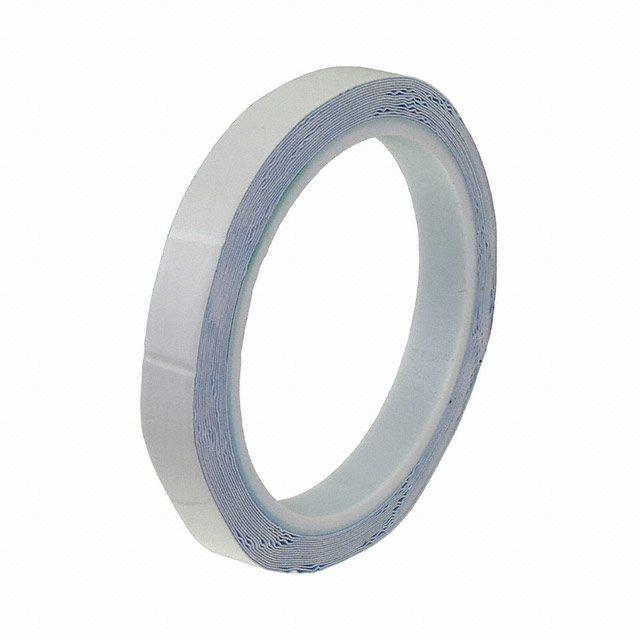

THERM PAD 4.57M X 12.7MM W/ADH

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

8815-0.5-5

Active

3M (TC)

THERM PAD 4.57M X 12.7MM W/ADH

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	8815-0.5-5

Adhesive	Adhesive - Both Sides
Backing, Carrier	Polyester
Color	White
Material	Acrylic
Outline [x]	4.57 m
Outline [y]	12.7 mm
Shape	Rectangular
Shelf Life	24 Months
Shelf Life Start	Date of Manufacture
Storage/Refrigeration Temperature	72 °F
Storage/Refrigeration Temperature	22 °C
Thermal Conductivity	0.6 W/m-K
Thickness	0.0148 in
Thickness	0.375 mm
Type	Transfer Tape, Roll

1/2-5 Series

Part	Adhesive	Thickness - Overall [custom]	Thickness - Overall [custom]	Shelf Life Start	Material	Length	Length	Type	Shelf Life	Storage/Refrigeration Temperature [Max]	Storage/Refrigeration Temperature [Min]	Usage	Tape Type	Width	Width	Width	Thickness - Backing, Carrier	Thickness - Backing, Carrier	Thickness - Backing, Carrier	Color	Length	Temperature Range [Max]	Temperature Range [Min]	Thickness - Adhesive [custom]	Thickness - Adhesive [custom]	Thickness - Adhesive [custom]	Backing, Carrier	Thickness	Thickness	Outline [x]	Outline [y]	Storage/Refrigeration Temperature	Storage/Refrigeration Temperature	Shape	Thermal Conductivity	Thickness - Overall [custom]	Thickness - Overall
3M (TC) 1/2-5-CN3490	Conductive Single Sided	0.002 in	0.06 mm	Date of Manufacture	Nickel-Copper (NI/CU) Fabric	4.6 m	15 ft	Shielding Tape	60 Months	27 °C 80 °F	10 °C
3M (TC) 1280-0.5-5	Rubber			Date of Manufacture		4.6 m	15 ft		18 Months	27 °C 80 °F	16 °C 60 °F	Masking Protection Sealing	Electroplating	0.5 in	12.7 mm	0.5 in	0.0009 in	0.9 mils	0.023 mm	Red	5 yd	311 °F	-40 °F	2.7 mils	0.0027 "	0.069 mm	Polyester Film
3M (TC) 8805-0.5-5	Adhesive - Both Sides			Date of Manufacture	Acrylic			Transfer Tape Roll	24 Months											White							Polyester	0.0049 in	0.125 mm	4.57 m	12.7 mm	72 °F	22 °C	Rectangular	0.6 W/m-K
3M (TC) 8815-0.5-5	Adhesive - Both Sides			Date of Manufacture	Acrylic			Transfer Tape Roll	24 Months											White							Polyester	0.0148 in	0.375 mm	4.57 m	12.7 mm	72 °F	22 °C	Rectangular	0.6 W/m-K
3M (TC) SJ3000-0.5-5						1.52 m	5 '	Hook and Loop												Black														Rectangular
3M (TC) 1/2-5-CN4490	Conductive Single Sided			Date of Manufacture	Nickel-Copper (NI/CU) Fabric	4.6 m	15 ft	Shielding Tape	60 Months	27 °C 80 °F	10 °C																									0.002 in	0.05 mm
3M (TC) 8810-0.5-5	Adhesive - Both Sides			Date of Manufacture	Acrylic			Transfer Tape Roll	24 Months											White							Polyester			4.57 m	12.7 mm	72 °F	22 °C	Rectangular	0.6 W/m-K

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 52.45
		10	$ 49.37
		25	$ 46.28
		50	$ 43.20
		100	$ 41.04

Description

General part information

1/2-5 Series

Thermal Pad White 4.57m x 12.70mm Rectangular Adhesive - Both Sides

Documents

Technical documentation and resources
