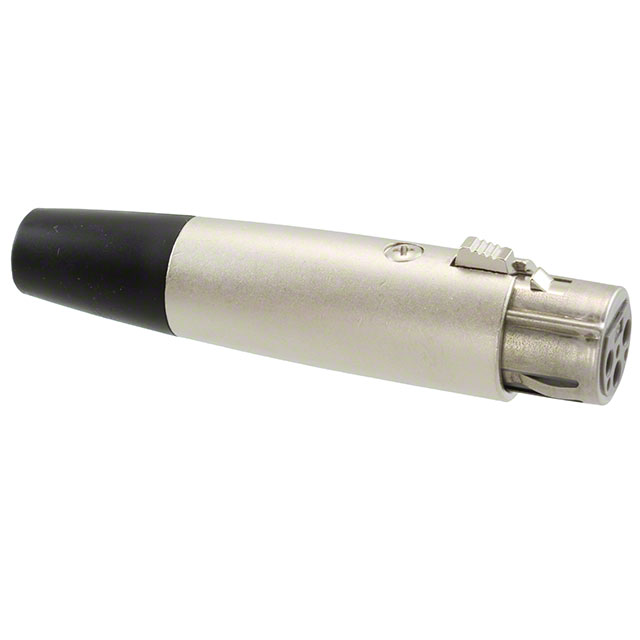

HA16PA-3S(71)
ObsoleteHirose Electric USA, Inc.
CONN PLUG FMALE 3P SOLDER EYELET
Deep-Dive with AI
Search across all available documentation for this part.
HA16PA-3S(71)
ObsoleteHirose Electric USA, Inc.
CONN PLUG FMALE 3P SOLDER EYELET
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | HA16PA-3S(71) |
|---|---|
| Applications | Industrial |
| Backshell Material, Plating | Nickel, Zinc Alloy |
| Color | Black, Silver |
| Connector Type | Female Sockets, Plug |
| Contact Finish - Mating | Silver |
| Contact Finish Thickness - Mating | 78.7 µin |
| Contact Finish Thickness - Mating | 2 µm |
| Contact Material | Phosphor Bronze |
| Current Rating (Amps) | 15 A |
| Fastening Type | Latch Lock |
| Features | Backshell |
| Insert Material | Nylon, Polyamide (PA) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Free Hanging (In-Line) |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -25 °C |
| Orientation | Keyed |
| Primary Material | Metal |
| Shell Material | Stainless Steel |
| Shell Size - Insert | 16 |
| Shielding | Shielded |
| Termination | Solder Eyelet(s) |
| Voltage Rating | 130 VAC, 180 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
HA16PA Series
3 Position Circular Connector Plug, Female Sockets Solder Eyelet(s)
