SKY81290-11-563LFR

Obsolete

Skyworks Solutions Inc.

IC LED DRIVER RGLTR 1.2A 14TDFN

Search across all available documentation for this part.

Obsolete

Skyworks Solutions Inc.

IC LED DRIVER RGLTR 1.2A 14TDFN

Technical Specifications

Parameters and characteristics for this part

Specification	SKY81290-11-563LFR

Applications	Camera Flash, Mobile Communications
Current - Output / Channel [custom]	1.2 A
Frequency	2 MHz
Internal Switch(s)	False
Mounting Type	Surface Mount
Number of Outputs	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C

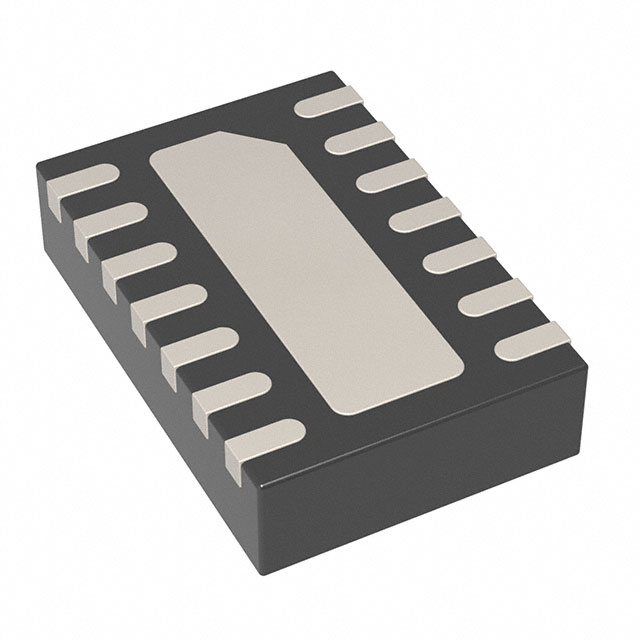

Package / Case	14-WFDFN Exposed Pad
Supplier Device Package	14-TDFN (3x2)
Topology	Step-Up (Boost)
Type	DC DC Regulator
Voltage - Supply (Max)	5.5 V

Part	Type	Applications	Current - Output / Channel [custom]	Topology	Frequency	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Number of Outputs	Mounting Type	Internal Switch(s)	Voltage - Supply (Max)	Supplier Device Package
Skyworks Solutions Inc. SKY81290-11-563LFR	DC DC Regulator	Camera Flash Mobile Communications	1.2 A	Step-Up (Boost)	2 MHz	14-WFDFN Exposed Pad	85 °C	-40 °C	1	Surface Mount		5.5 V	14-TDFN (3x2)
Skyworks Solutions Inc. SKY81290-11-563LFJ	DC DC Regulator	Camera Flash Mobile Communications	1.2 A	Step-Up (Boost)	2 MHz	14-WFDFN Exposed Pad	85 °C	-40 °C	1	Surface Mount		5.5 V	14-TDFN (3x2)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

LED Driver IC 1 Output DC DC Regulator Step-Up (Boost) Dimming 1.2A 14-TDFN (3x2)
