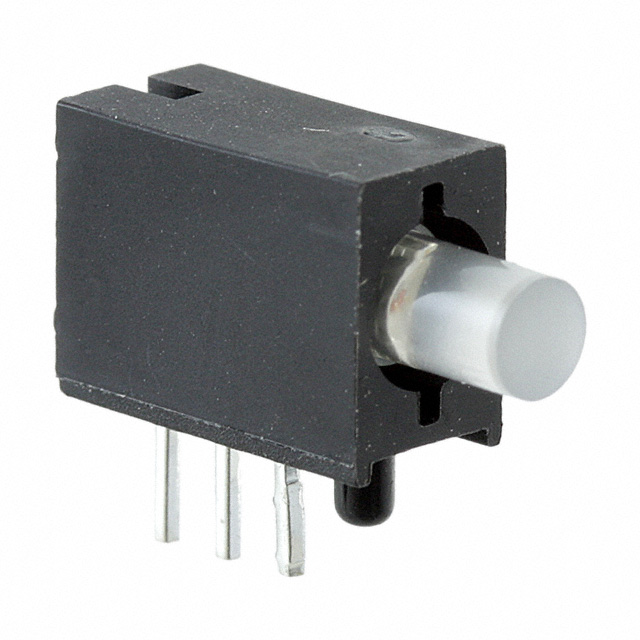

WP42WUM/EGW
ActiveKingbright
LED CBI 3MM GRN/RED DIFF RA
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
WP42WUM/EGW
ActiveKingbright
LED CBI 3MM GRN/RED DIFF RA
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | WP42WUM/EGW |
|---|---|
| Color | Red, Green |
| Configuration | Single |
| Current | 25 mA, 30 mA |
| Lens Size | 3 mm |
| Lens Size | T-1 |
| Lens Style | Round with Domed Top |
| Lens Type | Diffused, White |
| Millicandela Rating | 12 mcd, 8 mcd |
| Mounting Type | Through Hole, Right Angle |
| Viewing Angle | 100 ° |
| Voltage Rating | 2.2 V, 2 V |
| Wavelength - Peak [custom] | 565 nm, 627 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.01 | |
| 10 | $ 0.64 | |||
| 100 | $ 0.47 | |||
| 500 | $ 0.43 | |||
| 1000 | $ 0.36 | |||
| 2000 | $ 0.34 | |||
| 5000 | $ 0.33 | |||
| 10000 | $ 0.32 | |||
| 25000 | $ 0.32 | |||
Description
General part information
WP42WUM Series
LED Circuit Board Indicator LED Circuit Board Indicator Single Green, Red Diffused, White 2.2V Green, 2V Red 25mA Green, 30mA Red Round with Domed Top 3mm, T-1 Through Hole, Right Angle
