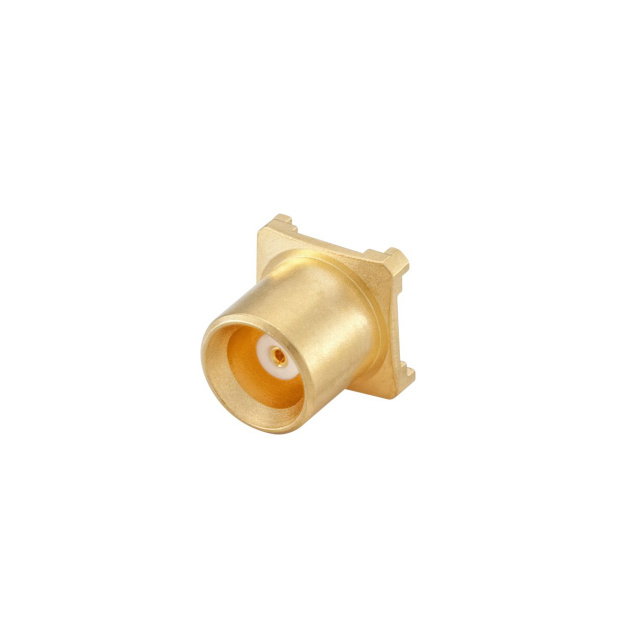

29K101-40ML5

Active

Rosenberger

CONN MCX JACK STR 50OHM SMD

Search across all available documentation for this part.

Active

Rosenberger

CONN MCX JACK STR 50OHM SMD

Technical Specifications

Parameters and characteristics for this part

Specification	29K101-40ML5

Body Finish	Gold
Body Material	Brass
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	MCX
Connector Type	Female Socket, Jack
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max [Max]	6000 MHz
Housing Color	Gold
Impedance	50 Ohms
Includes	1 Cap, 1 Connector
Mating Cycles	500
Mounting Type	Surface Mount
Number of Ports	1
Operating Temperature [Max]	155 °C
Operating Temperature [Min]	-55 °C
Shield Termination	Solder
Voltage Rating	335 V

Part	Housing Color	Number of Ports	Fastening Type	Impedance	Frequency - Max [Max]	Mounting Type	Connector Type	Includes	Contact Termination	Shield Termination	Body Material	Center Contact Material	Connector Style	Center Contact Plating	Voltage Rating	Body Finish	Dielectric Material	Mating Cycles	Operating Temperature [Max]	Operating Temperature [Min]
Rosenberger 29K101-40ML5	Gold	1	Snap-On	50 Ohms	6000 MHz	Surface Mount	Female Socket Jack	1 Cap 1 Connector	Solder	Solder	Brass	Beryllium Copper	MCX	Gold	335 V	Gold	Polytetrafluoroethylene (PTFE)	500	155 °C	-55 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

MCX Connector Jack, Female Socket 50 Ohms Surface Mount Solder
