MUSBDA1130

Active

Amphenol ICC (Commercial Products)

CONN RCP USB2.0 TYPEB 4P PNL MNT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

MUSBDA1130

Active

Amphenol ICC (Commercial Products)

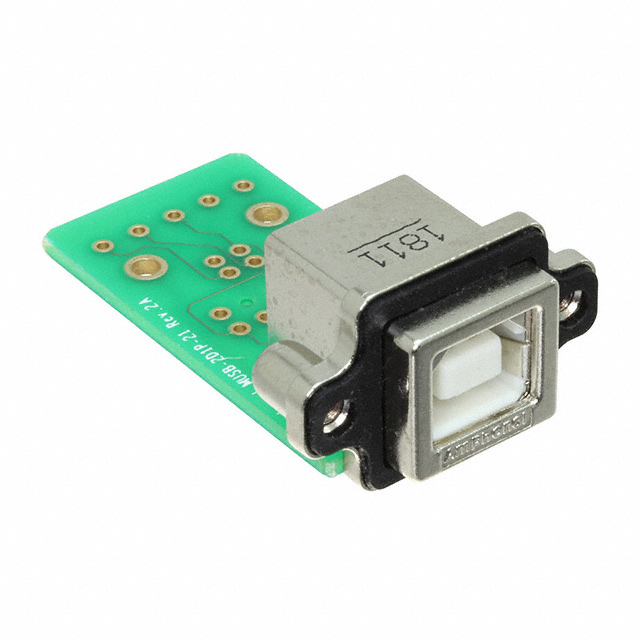

CONN RCP USB2.0 TYPEB 4P PNL MNT

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MUSBDA1130

Connector Type	USB-B
Contact Finish	Gold
Current Rating (Amps)	1.5 A
Gender	Receptacle
Ingress Protection	IP67 - Dust Tight, Waterproof
Insulation Color	White
Material Flammability Rating	UL94 V-0
Mating Cycles	1500
Mounting Feature	Flange, Horizontal
Number of Contacts [custom]	4
Number of Ports	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Shielding	Shielded
Specifications	USB 2.0
Termination	PC Board, Solder

MUSBD Series

Part	Mounting Type	Termination	Mating Cycles	Shell/Shielding Material	Insulation Color	Number of Contacts [custom]	Connector Type	Contact Finish	Number of Ports	Specifications	Mounting Feature	Operating Temperature [Max]	Operating Temperature [Min]	Material Flammability Rating	Features	Gender	Current Rating (Amps)	Shielding	Ingress Protection	Convert From (Adapter End)	Convert To (Adapter End)
Amphenol ICC (Commercial Products) MUSBD111M0	Panel Mount Right Angle Through Hole	Solder	1500	Copper Alloy	White	4	USB-B	Gold	1	USB 2.0	Flange Horizontal	105 ░C	-40 °C	UL94 V-0	Board Guide	Receptacle	1.5 A	Shielded	IP67 - Dust Tight Waterproof
Amphenol ICC (Commercial Products) MUSBDA1130		PC Board Solder	1500		White	4	USB-B	Gold	1	USB 2.0	Flange Horizontal	105 ░C	-40 °C	UL94 V-0		Receptacle	1.5 A	Shielded	IP67 - Dust Tight Waterproof
Amphenol ICC (Commercial Products) MUSBD51101	Panel Mount Through Hole	Solder	1500	Copper Alloy	White	4	USB-B	Gold	1	USB 2.0	Flange Vertical	105 ░C	-40 °C	UL94 V-0	Board Lock Cover	Receptacle	1.5 A	Shielded	IP67 - Dust Tight Waterproof
Amphenol ICC (Commercial Products) MUSBD11130	Panel Mount Right Angle Through Hole	Solder	1500	Copper Alloy	White	4	USB-B	Gold	1	USB 2.0	Flange Horizontal	105 ░C	-40 °C	UL94 V-0	Board Guide	Receptacle	1.5 A	Shielded	IP67 - Dust Tight Waterproof
Amphenol ICC (Commercial Products) MUSBD21130	Board Mounted																			USB-B (USB TYPE-B) Receptacle	10 pos Male Pins Rectangular Connector
Amphenol ICC (Commercial Products) MUSBD11135	Panel Mount Right Angle Through Hole	Solder	1500	Copper Alloy	White	4	USB-B	Gold	1	USB 2.0	Flange Horizontal	105 ░C	-40 °C	UL94 V-0	Board Guide Cover	Receptacle	1.5 A	Shielded	IP67 - Dust Tight Waterproof
Amphenol ICC (Commercial Products) MUSBD511N0	Panel Mount Through Hole	Solder	1500	Copper Alloy	White	4	USB-B	Gold	1	USB 2.0	Flange Vertical	105 ░C	-40 °C	UL94 V-0		Receptacle	1.5 A	Shielded	IP67 - Dust Tight Waterproof

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 19.54
		10	$ 17.11
		25	$ 16.37
		60	$ 15.85
		120	$ 15.32
		300	$ 14.47
		540	$ 14.05

Description

General part information

MUSBD Series

USB-B (USB TYPE-B) USB 2.0 Receptacle Connector 4 Position Panel Mount

Documents

Technical documentation and resources
