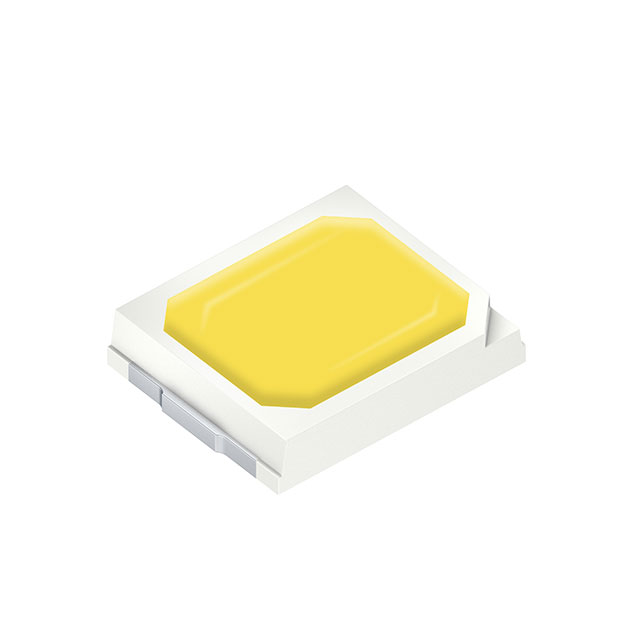

GW QTLTS2.QM-H2H8-XX53-1-65-R33
Activeams-OSRAM USA INC.
LED OSCONIQ COOL WHT 5000K 2835
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | GW QTLTS2.QM-H2H8-XX53-1-65-R33 |
|---|---|
| CCT (K) | 5000 K |
| Color | Cool, White |
| CRI (Color Rendering Index) | 90 |
| Current - Max [Max] | 200 mA |
| Current - Test | 65 mA |
| Flux @ 25°C, Current - Test | 36 lm |
| Height - Seated (Max) [Max] [z] | 0.8 mm |
| Height - Seated (Max) [Max] [z] | 0.031 " |
| Mounting Type | Surface Mount |
| Package / Case | 1113 (2835 Metric) |
| Size / Dimension [x] | 2.8 mm |
| Size / Dimension [x] | 0.11 in |
| Size / Dimension [y] | 0.138 in |
| Size / Dimension [y] | 3.5 mm |
| Supplier Device Package | 2835 |
| Viewing Angle | 120 ° |
| Voltage - Forward (Vf) (Typ) | 2.71 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.40 | |
| 10 | $ 0.23 | |||
| 100 | $ 0.15 | |||
| 500 | $ 0.11 | |||
| 1000 | $ 0.10 | |||
| Digi-Reel® | 1 | $ 0.40 | ||
| 10 | $ 0.23 | |||
| 100 | $ 0.15 | |||
| 500 | $ 0.11 | |||
| 1000 | $ 0.10 | |||
| Tape & Reel (TR) | 100000 | $ 0.07 | ||
Description
General part information
GW QTLTS2.QM Series
LED Lighting OSCONIQ® E 2835 White, Cool 5000K 2.71V 65mA 120° 1113 (2835 Metric)
