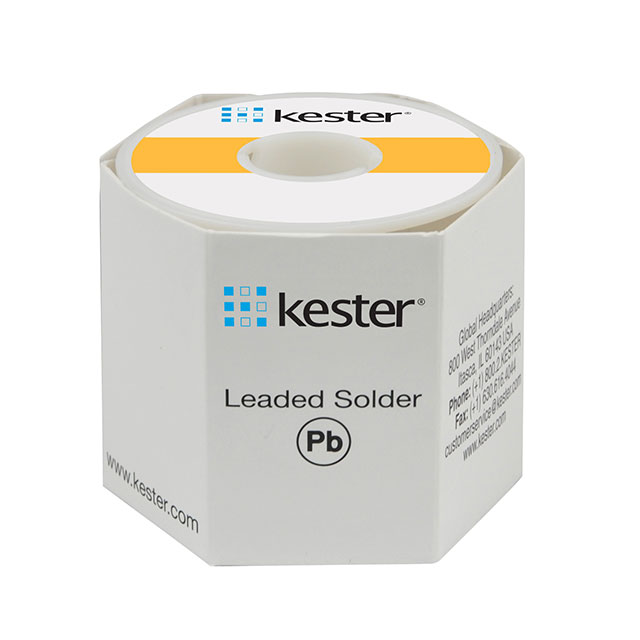

92-7150-9703

Active

Kester Solder

SOLDER FLUX-CORED/285 63/37 .015

Search across all available documentation for this part.

Active

Kester Solder

SOLDER FLUX-CORED/285 63/37 .015

Technical Specifications

Parameters and characteristics for this part

Specification	92-7150-9703

Composition	Sn62Pb36Ag2 (62/36/2)
Diameter [diameter]	0.015 in
Diameter [diameter]	0.38 mm
Flux Type	Rosin Mildly Activated (RMA)
Form	Spool
Form	17.64 oz, 500 g
Melting Point [custom]	354 °F
Melting Point [custom]	179 °C
Process	Leaded
Storage/Refrigeration Temperature [Max]	40 °C
Storage/Refrigeration Temperature [Min]	10 °C
Type	Wire Solder
Wire Gauge	27 AWG, 28 SWG

Part	Diameter [diameter]	Diameter [diameter]	Storage/Refrigeration Temperature [Min]	Storage/Refrigeration Temperature [Max]	Flux Type	Process	Composition	Form	Form	Melting Point [custom]	Melting Point [custom]	Type	Wire Gauge	Wire Gauge
Kester Solder 92-7150-9702	0.51 mm	0.02 in	10 °C	40 °C	Rosin Mildly Activated (RMA)	Leaded	Sn62Pb36Ag2 (62/36/2)	Spool	17.64 oz 500 g	354 °F	179 °C	Wire Solder	24 AWG 25 mmý
Kester Solder 92-7150-9703	0.38 mm	0.015 in	10 °C	40 °C	Rosin Mildly Activated (RMA)	Leaded	Sn62Pb36Ag2 (62/36/2)	Spool	17.64 oz 500 g	354 °F	179 °C	Wire Solder	27 AWG 28 SWG
Kester Solder 92-7150-8806	0.38 mm	0.015 in	10 °C	40 °C	No-Clean	Leaded	Sn62Pb36Ag2 (62/36/2)	Spool	17.64 oz 500 g	361 °F	183 °C	Wire Solder	27 AWG 28 SWG
Kester Solder 92-7150-8807	0.51 mm	0.02 in	10 °C	40 °C	No-Clean	Leaded	Sn62Pb36Ag2 (62/36/2)	Spool	17.64 oz 500 g	361 °F	183 °C	Wire Solder	24 AWG 25 mmý
Kester Solder 92-7150-8800			10 °C	40 °C	No-Clean	Leaded	Sn62Pb36Ag2 (62/36/2)	Spool	17.64 oz 500 g	354 °F	179 °C	Wire Solder		20 AWG 22 SWG

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Leaded Rosin Mildly Activated (RMA) Wire Solder Sn62Pb36Ag2 (62/36/2) 27 AWG, 28 SWG Spool, 17.64 oz (500g)

Technical documentation and resources
