Q2-Z-5-01-SS50FT

Active

Qualtek

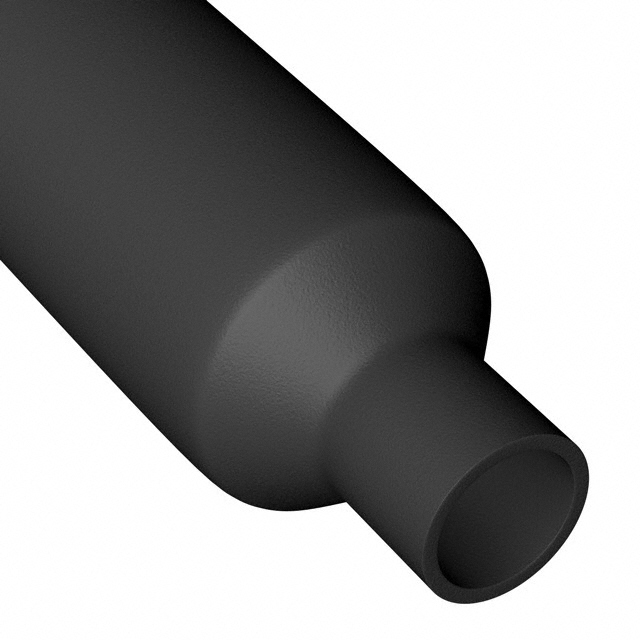

HEATSHRINK POLY Q2Z 5"X50FT BLK

Search across all available documentation for this part.

Active

Qualtek

HEATSHRINK POLY Q2Z 5"X50FT BLK

Technical Specifications

Parameters and characteristics for this part

Specification	Q2-Z-5-01-SS50FT

Color	Black
Features	Flame Retardant
Inner Diameter - Recovered [diameter]	2.5 in
Inner Diameter - Recovered [diameter]	63.5 mm
Inner Diameter - Supplied [diameter]	4.961 in
Inner Diameter - Supplied [diameter]	126.01 mm
Length	15.2 m
Length	50 ft
Material	Polyolefin (PO)
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Recovered Wall Thickness	0.051 in
Recovered Wall Thickness	1.3 mm
Shelf Life	144 Months
Shrink Temperature	70 °C
Shrinkage Ratio	2 to 1
Storage/Refrigeration Temperature [Max]	40 °C
Storage/Refrigeration Temperature [Min]	-10 °C, -50 °F
Type	Tubing, Flexible

Part	Storage/Refrigeration Temperature [Min]	Storage/Refrigeration Temperature [Max]	Type	Material	Shelf Life	Shrinkage Ratio	Recovered Wall Thickness	Recovered Wall Thickness	Length	Length	Inner Diameter - Supplied [diameter]	Inner Diameter - Supplied [diameter]	Operating Temperature [Min]	Operating Temperature [Max]	Shrink Temperature	Color	Features	Inner Diameter - Recovered [diameter]	Inner Diameter - Recovered [diameter]
Qualtek Q2-Z-5-01-SS50FT	-50 °F -10 °C	40 °C	Tubing Flexible	Polyolefin (PO)	144 Months	2 to 1	0.051 in	1.3 mm	15.2 m	50 ft	4.961 in	126.01 mm	-55 °C	125 °C	70 °C	Black	Flame Retardant	2.5 in	63.5 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	250	$ 3.73

General part information

Heat Shrink Tubing, Flexible 4.961" (126.01mm) 2 to 1 Black 50.0' (15.2m)
