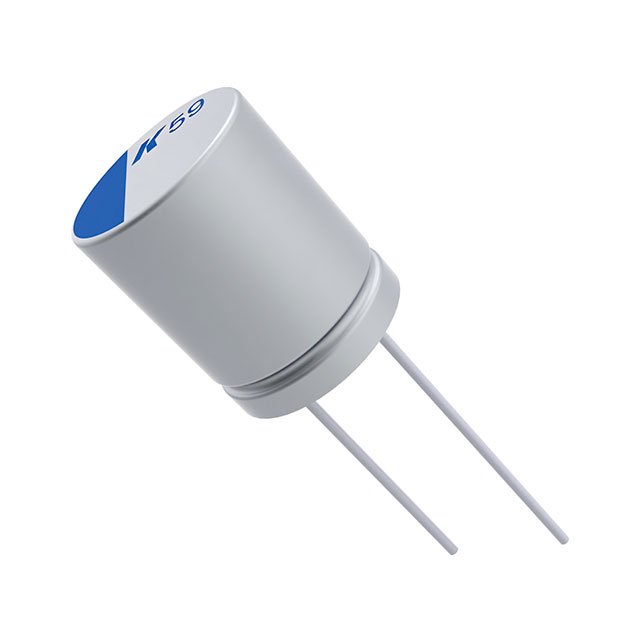

A759TC227M2EAAE250

Active

KEMET

CAP ALUM POLY 220UF 20% 250V TH

Search across all available documentation for this part.

Active

KEMET

CAP ALUM POLY 220UF 20% 250V TH

Technical Specifications

Parameters and characteristics for this part

Specification	A759TC227M2EAAE250

Applications	General Purpose
Capacitance	220 µF
ESR (Equivalent Series Resistance)	250 mOhm
Height - Seated (Max) [Max] [z]	1.85 in
Height - Seated (Max) [Max] [z]	47 mm
Lead Spacing	0.394 in
Lead Spacing	10 mm
Lifetime @ Temp.	2000 Hrs
Mounting Type	Through Hole
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Package / Case	Radial, Can
Ripple Current @ High Frequency	1.8 A
Ripple Current @ Low Frequency	90 mA
Size / Dimension [diameter]	22 mm
Size / Dimension [diameter]	0.866 in
Tolerance	20 %
Type	Polymer
Voltage - Rated	250 V

Part	Lead Spacing	Lead Spacing	Ripple Current @ Low Frequency	Voltage - Rated	ESR (Equivalent Series Resistance)	Ripple Current @ High Frequency	Applications	Tolerance	Mounting Type	Lifetime @ Temp.	Capacitance	Operating Temperature [Min]	Operating Temperature [Max]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Package / Case	Size / Dimension [diameter]	Size / Dimension [diameter]	Type
KEMET A759TC227M2EAAE250	0.394 in	10 mm	90 mA	250 V	250 mOhm	1.8 A	General Purpose	20 %	Through Hole	2000 Hrs	220 µF	-55 °C	125 °C	1.85 in	47 mm	Radial Can	22 mm	0.866 in	Polymer

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

220 µF 250 V Aluminum - Polymer Capacitors Radial, Can 250mOhm 2000 Hrs @ 125°C
