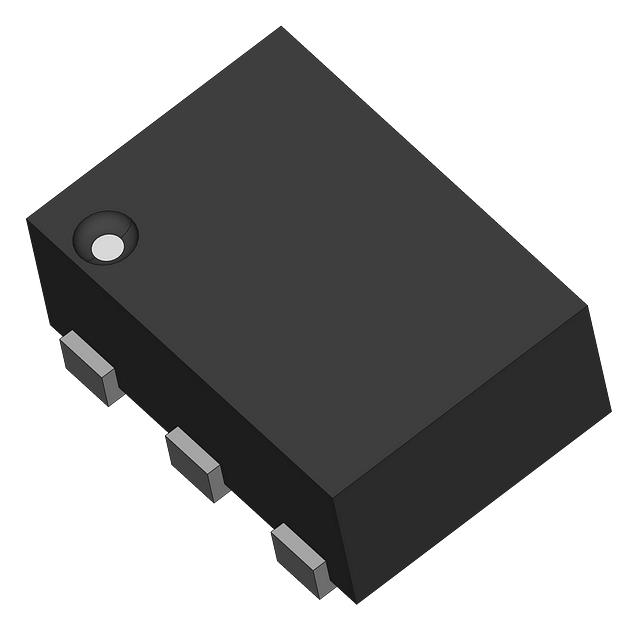

74AUP1G06GFH

Active

Freescale Semiconductor - NXP

IC INVERTER 1CH 1-INP 6XSON

Search across all available documentation for this part.

Active

Freescale Semiconductor - NXP

IC INVERTER 1CH 1-INP 6XSON

Technical Specifications

Parameters and characteristics for this part

Specification	74AUP1G06GFH

Current - Output High, Low	-
Current - Output High, Low	4 mA
Current - Quiescent (Max) [Max]	500 nA
Features	Open Drain
Input Logic Level - High [Max]	2 V
Input Logic Level - High [Min]	1.6 V
Logic Type	Inverter
Max Propagation Delay @ V, Max CL	10.5 ns
Mounting Type	Surface Mount
Number of Circuits	1
Number of Inputs	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Package / Case	6-XFDFN
Supplier Device Package	6-XSON (1x1)
Voltage - Supply [Max]	3.6 V
Voltage - Supply [Min]	0.8 V

Part	Input Logic Level - High [Max]	Input Logic Level - High [Min]	Number of Circuits	Package / Case	Current - Output High, Low	Current - Output High, Low	Mounting Type	Features	Max Propagation Delay @ V, Max CL	Operating Temperature [Max]	Operating Temperature [Min]	Supplier Device Package	Logic Type	Number of Inputs	Current - Quiescent (Max) [Max]	Voltage - Supply [Min]	Voltage - Supply [Max]	Qualification	Grade	Supplier Device Package [x]	Supplier Device Package [y]
Freescale Semiconductor - NXP 74AUP1G06GFH	2 V	1.6 V	1	6-XFDFN	-	4 mA	Surface Mount	Open Drain	10.5 ns	125 °C	-40 °C	6-XSON (1x1)	Inverter	1	500 nA	0.8 V	3.6 V
Freescale Semiconductor - NXP 74AUP1G06GW-Q100125	2 V	1.6 V	1	5-TSSOP SC-70-5 SOT-353	-	4 mA	Surface Mount	Open Drain	10.5 ns	125 °C	-40 °C	5-TSSOP	Inverter	1	500 nA	0.8 V	3.6 V	AEC-Q100	Automotive
Freescale Semiconductor - NXP 74AUP1G06GN,132	2 V	1.6 V	1	6-XFDFN	-	4 mA	Surface Mount	Open Drain	10.5 ns	125 °C	-40 °C	6-XSON	Inverter	1	500 nA	0.8 V	3.6 V			0.9	1
Freescale Semiconductor - NXP 74AUP1G06GS,132	2 V	1.6 V	1	6-XFDFN	-	4 mA	Surface Mount	Open Drain	10.5 ns	125 °C	-40 °C	6-XSON SOT1202 (1x1)	Inverter	1	500 nA	0.8 V	3.6 V
Freescale Semiconductor - NXP 74AUP1G06GM,115	2 V	1.6 V	1	6-XFDFN	-	4 mA	Surface Mount	Open Drain	10.5 ns	125 °C	-40 °C	6-XSON SOT886 (1.45x1)	Inverter	1	500 nA	0.8 V	3.6 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1567	$ 0.19

General part information

Inverter IC 1 Channel Open Drain 6-XSON (1x1)
