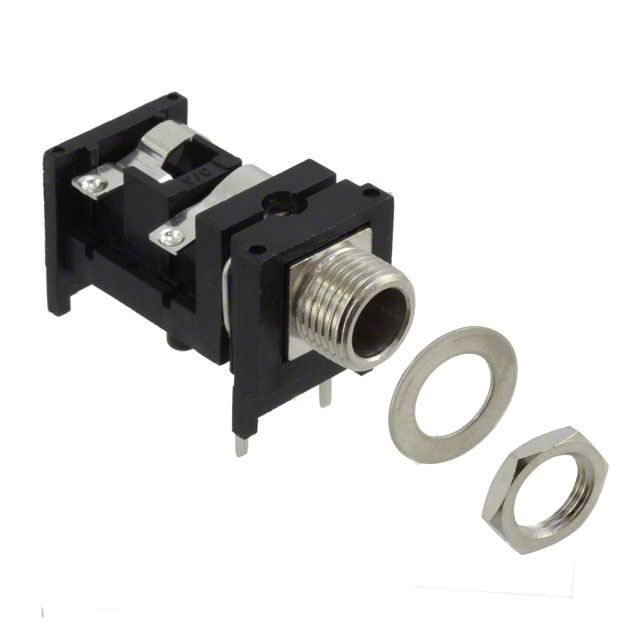

RA49C12B

Active

Switchcraft Inc.

CONN JACK STEREO 6.35MM R/A

Search across all available documentation for this part.

Active

Switchcraft Inc.

CONN JACK STEREO 6.35MM R/A

Technical Specifications

Parameters and characteristics for this part

Specification	RA49C12B

Actual Diameter [diameter]	6.43 mm
Actual Diameter [diameter]	0.253 "
Body Color	Silver, Black
Body Material	Brass
Connector Type	Phone Jack
Contact Material	Copper Alloy
Contact Material - Plating [custom]	Silver
Features	Board Guide
Gender	Female
Housing Material	Thermoplastic, Polyester
Includes	Connector, Washer, Nut
Internal Switch(s)	False
Mounting Type	Through Hole, Right Angle
Number of Positions/Contacts [custom]	3
Number of Positions/Contacts [custom]	3
Shielding	Unshielded
Signal Lines	Stereo
Termination	Solder
Thread Size	3/8"-32

DC Power Connectors QG R.A. MALE CONNECTOR, RoHS

Part	Mounting Type	Shielding	Includes	Signal Lines	Features	Contact Material - Plating [custom]	Body Material	Thread Size	Body Color	Gender	Connector Type	Number of Positions/Contacts [custom]	Number of Positions/Contacts [custom]	Termination	Housing Material	Contact Material	Actual Diameter [diameter]	Actual Diameter [diameter]	Internal Switch(s)	Number of Positions/Contacts
Switchcraft Inc. RA49C14B	Through Hole Right Angle	Unshielded	Connector Nut Washer	Stereo	Board Guide	Silver	Brass	3/8"-32	Black Silver	Female	Phone Jack	3	5	Solder	Polyester Thermoplastic	Copper Alloy	6.43 mm	0.253 "	Two Switches
Switchcraft Inc. RA49C12B	Through Hole Right Angle	Unshielded	Connector Nut Washer	Stereo	Board Guide	Silver	Brass	3/8"-32	Black Silver	Female	Phone Jack	3	3	Solder	Polyester Thermoplastic	Copper Alloy	6.43 mm	0.253 "
Switchcraft Inc. RA49C12A	Through Hole Right Angle	Unshielded	Connector Nut Washer	Mono	Board Guide	Silver	Brass	3/8"-32	Black Silver	Female	Phone Jack			Solder	Polyester Thermoplastic	Copper Alloy	6.43 mm	0.253 "	Single Switch	2 Conductors 3 Conductors
