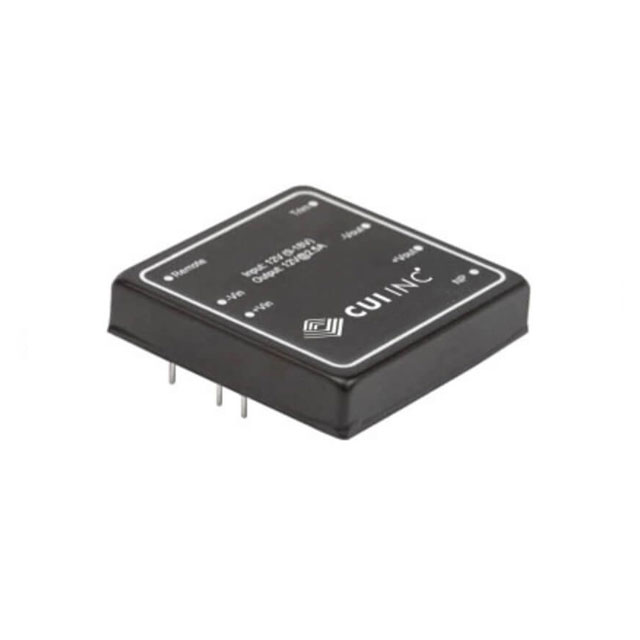

VCD40-D12-S5

Active

CUI Inc.

DC DC CONVERTER 5V 40W

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	VCD40-D12-S5

Applications	ITE (Commercial)
Approval Agency	UL
Current - Output (Max) [Max]	8 A
Efficiency	89 %
Features	OTP, OVP, SCP
Mounting Type	Through Hole
Number of Outputs	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	9-DIP Module
Power (Watts)	40 W
Size / Dimension [x]	50.8 mm
Size / Dimension [x]	2 in
Size / Dimension [y]	50.8 mm
Size / Dimension [y]	2 in
Size / Dimension [z]	10.2 mm
Size / Dimension [z]	0.4 "
Standard Number	60950-1
Type	Isolated Module
Voltage - Input (Max) [Max]	18 V
Voltage - Input (Min) [Min]	9 V
Voltage - Isolation	1.5 kV
Voltage - Output 1	5 V

VCD40 Series

Part	Type	Features	Voltage - Output 1	Voltage - Output 3	Package / Case	Voltage - Input (Min) [Min]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Operating Temperature [Max]	Operating Temperature [Min]	Current - Output (Max)	Voltage - Isolation	Standard Number	Number of Outputs	Voltage - Input (Max) [Max]	Approval Agency	Mounting Type	Applications	Power (Watts)	Voltage - Output 2	Efficiency	Current - Output (Max)	Current - Output (Max) [Max]
CUI Inc. VCD40-D12-T315	Isolated Module	OTP OVP SCP	3.3 V	-15 V	9-DIP Module	9 V	10.2 mm	50.8 mm	2 in	0.4 "	50.8 mm	2 in	85 °C	-40 °C	6 A 300 mA	1.5 kV	60950-1	3	18 V	UL	Through Hole	ITE (Commercial)	29 W	15 V	88 %
CUI Inc. VCD40-D24-D12	Isolated Module	OTP OVP SCP	12 V		9-DIP Module	18 V	10.2 mm	50.8 mm	2 in	0.4 "	50.8 mm	2 in	85 °C	-40 °C	1.8 A	1.5 kV	60950-1	2	36 V	UL	Through Hole	ITE (Commercial)	43 W	-12 V	91 %	1.8 A
CUI Inc. VCD40-D12-D15	Isolated Module	OTP OVP SCP	15 V		9-DIP Module	9 V	10.2 mm	50.8 mm	2 in	0.4 "	50.8 mm	2 in	85 °C	-40 °C	1.4 A	1.5 kV	60950-1	2	18 V	UL	Through Hole	ITE (Commercial)	42 W	-15 V	90 %
CUI Inc. VCD40-D48-T515	Isolated Module	OTP OVP SCP	5 V	-15 V	9-DIP Module	36 V	10.2 mm	50.8 mm	2 in	0.4 "	50.8 mm	2 in	85 °C	-40 °C	6 A 300 mA	1.5 kV	60950-1	3	72 V	UL	Through Hole	ITE (Commercial)	39 W	15 V	90 %
CUI Inc. VCD40-D12-T312	Isolated Module	OTP OVP SCP	3.3 V	-12 V	9-DIP Module	9 V	10.2 mm	50.8 mm	2 in	0.4 "	50.8 mm	2 in	85 °C	-40 °C		1.5 kV	60950-1	3	18 V	UL	Through Hole	ITE (Commercial)	29 W	12 V	88 %
CUI Inc. VCD40-D12-T512	Isolated Module	OTP OVP SCP	5 V	-12 V	9-DIP Module	9 V	10.2 mm	50.8 mm	2 in	0.4 "	50.8 mm	2 in	85 °C	-40 °C		1.5 kV	60950-1	3	18 V	UL	Through Hole	ITE (Commercial)	40 W	12 V	88 %
CUI Inc. VCD40-D48-T312	Isolated Module	OTP OVP SCP	3.3 V	-12 V	9-DIP Module	36 V	10.2 mm	50.8 mm	2 in	0.4 "	50.8 mm	2 in	85 °C	-40 °C		1.5 kV	60950-1	3	72 V	UL	Through Hole	ITE (Commercial)	29 W	12 V	89 %
CUI Inc. VCD40-D12-S5	Isolated Module	OTP OVP SCP	5 V		9-DIP Module	9 V	10.2 mm	50.8 mm	2 in	0.4 "	50.8 mm	2 in	85 °C	-40 °C		1.5 kV	60950-1	1	18 V	UL	Through Hole	ITE (Commercial)	40 W		89 %		8 A
CUI Inc. VCD40-D48-D15	Isolated Module	OTP OVP SCP	15 V		9-DIP Module	36 V	10.2 mm	50.8 mm	2 in	0.4 "	50.8 mm	2 in	85 °C	-40 °C	1.4 A	1.5 kV	60950-1	2	72 V	UL	Through Hole	ITE (Commercial)	42 W	-15 V	91 %
CUI Inc. VCD40-D24-S5	Isolated Module	OTP OVP SCP	5 V		9-DIP Module	18 V	10.2 mm	50.8 mm	2 in	0.4 "	50.8 mm	2 in	85 °C	-40 °C		1.5 kV	60950-1	1	36 V	UL	Through Hole	ITE (Commercial)	40 W		91 %		8 A
