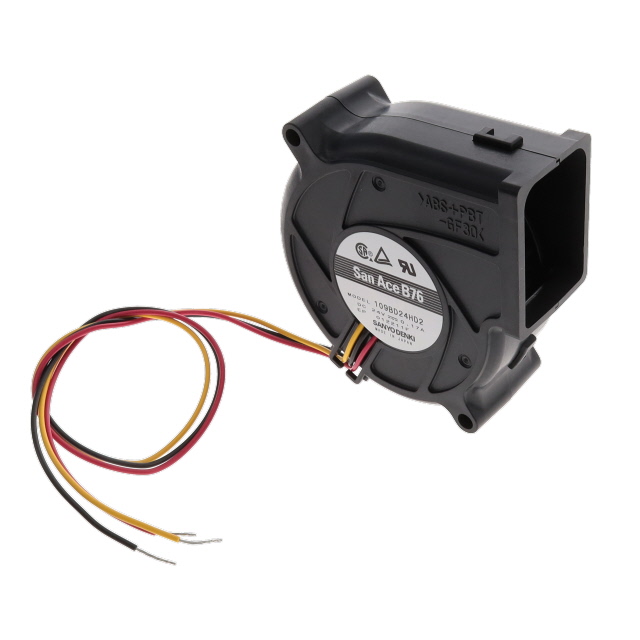

109BD24HD2

Active

Sanyo Denki America Inc.

FAN BLOWER 76X30MM 24VDC WIRE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsNumber System Blower

109BD24HD2

Active

Sanyo Denki America Inc.

FAN BLOWER 76X30MM 24VDC WIRE

Deep-Dive with AI

DocumentsNumber System Blower

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	109BD24HD2

Air Flow	12.7 CFM
Air Flow	0.356 mł/min
Approval Agency	CSA, TUV, UL
Bearing Type	Ball
Current Rating (Amps)	0.17 A
Fan Type	Blower
Features	Locked Rotor Sensor
Lifetime @ Temp.	40000 Hrs
Material - Blade	Plastic
Material - Frame	Plastic
Noise	41.5 dB
Operating Temperature [Max]	60 °C
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-20 °C
Operating Temperature [Min]	-20 C
RPM	3000 RPM
Size / Dimension	Square/Rounded
Size / Dimension [x]	76 mm
Size / Dimension [y]	75.5 mm
Termination	3 Wire Leads
Voltage - Rated	24 VDC
Weight	0.222 lb
Weight	100.7 g
Width [y]	30 mm

109BD24 Series

Part	RPM	Features	Current Rating (Amps)	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Material - Blade	Lifetime @ Temp.	Fan Type	Noise	Termination	Material - Frame	Voltage - Rated	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension	Approval Agency	Weight	Weight	Width [y]	Bearing Type	Air Flow	Air Flow	Static Pressure	Static Pressure	Power (Watts)
Sanyo Denki America Inc. 109BD24HC2	3000 RPM	Locked Rotor Protection Speed Sensor (Tach)	0.17 A	60 °C	-20 °C	-20 C	60 °C	Plastic	40000 Hrs	Blower	41.5 dB	3 Wire Leads	Plastic	24 VDC	75.5 mm	76 mm	Square/Rounded	CSA TUV UL	0.222 lb	100.7 g	30 mm	Ball
Sanyo Denki America Inc. 109BD24HD2	3000 RPM	Locked Rotor Sensor	0.17 A	60 °C	-20 °C	-20 C	60 °C	Plastic	40000 Hrs	Blower	41.5 dB	3 Wire Leads	Plastic	24 VDC	75.5 mm	76 mm	Square/Rounded	CSA TUV UL	0.222 lb	100.7 g	30 mm	Ball	12.7 CFM	0.356 mł/min
Sanyo Denki America Inc. 109BD24MA2	2100 RPM		100 mA	70 °C	-20 °C	-20 C	70 °C	Plastic	40000 Hrs	Blower	32.5 dB	2 Wire Leads	Plastic	24 VDC	75.5 mm	76 mm	Square/Rounded	CSA TUV UL	0.222 lb	100.7 g	30 mm	Ball	8.8 CFM	0.246 mł/min	58.8 Pa	0.236 in H2O	2.4 W
Sanyo Denki America Inc. 109BD24HA2	3000 RPM		0.17 A	60 °C	-20 °C	-20 C	60 °C	Plastic	40000 Hrs	Blower	41.5 dB	2 Wire Leads	Plastic	24 VDC	75.5 mm	76 mm	Square/Rounded	CSA TUV UL	0.222 lb	100.7 g	30 mm	Ball
Sanyo Denki America Inc. 109BD24MC2	2100 RPM	Locked Rotor Protection Speed Sensor (Tach)	100 mA	70 °C	-20 °C	-20 C	70 °C	Plastic	40000 Hrs	Blower	32.5 dB	3 Wire Leads	Plastic	24 VDC	75.5 mm	76 mm	Square/Rounded	CSA TUV UL	0.222 lb	100.7 g	30 mm	Ball	8.8 CFM	0.246 mł/min	58.8 Pa	0.236 in H2O	2.4 W
Sanyo Denki America Inc. 109BD24MD2	2100 RPM	Locked Rotor Sensor	100 mA	70 °C	-20 °C	-20 C	70 °C	Plastic	40000 Hrs	Blower	32.5 dB	3 Wire Leads	Plastic	24 VDC	75.5 mm	76 mm	Square/Rounded	CSA TUV UL	0.222 lb	100.7 g	30 mm	Ball	8.8 CFM	0.246 mł/min	58.8 Pa	0.236 in H2O	2.4 W

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 36.64

Description

General part information

109BD24 Series

Fan Blower 24VDC Square/Rounded - 76mm L x 75.5mm H Ball 12.7 CFM (0.356mł/min) 3 Wire Leads
