10064555-392210ELF

Obsolete

Amphenol ICC (FCI)

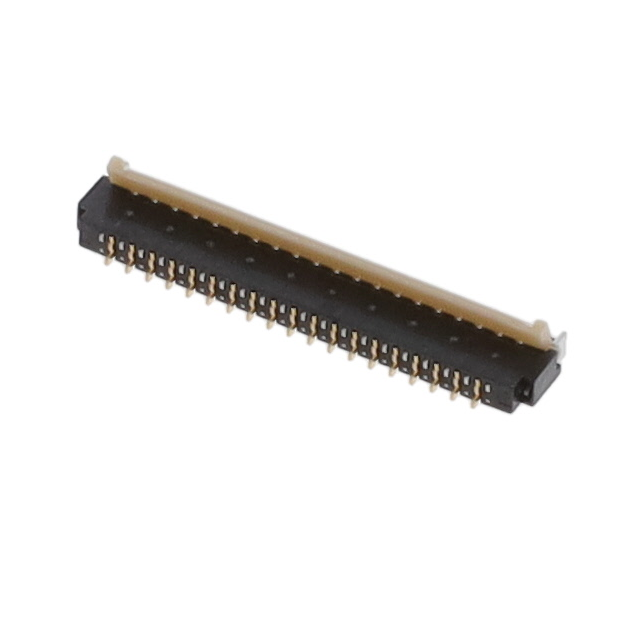

CONN FPC TOP 39POS 0.3MM R/A

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

10064555-392210ELF

Obsolete

Amphenol ICC (FCI)

CONN FPC TOP 39POS 0.3MM R/A

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	10064555-392210ELF

Actuator Color	Black
Actuator Material	Thermoplastic
Cable End Type	Straight
Connector/Contact Type	Contacts, Top
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Material	Copper Alloy
Current Rating (Amps)	0.2 A
Features	Zero Insertion Force (ZIF), Solder Retention
FFC, FCB Thickness	0.3 mm
Flat Flex Type	FPC
Height Above Board	0.037 in
Height Above Board	0.95 mm
Housing Color	Black
Housing Material	Thermoplastic
Locking Feature	Slide Lock
Material Flammability Rating	UL94 V-0
Mating Cycles	10
Mounting Type	Surface Mount, Right Angle
Number of Positions	39
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Pitch [x]	0.012 in
Pitch [x]	0.3 mm
Termination	Solder
Voltage Rating	30 VDC

10064555 Series

Part	Contact Finish	Actuator Material	Mating Cycles	Voltage Rating	Cable End Type	Contact Finish Thickness	Contact Material	Number of Positions	Flat Flex Type	Height Above Board	Height Above Board	Actuator Color	Locking Feature	Material Flammability Rating	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Current Rating (Amps)	Connector/Contact Type	Housing Color	Termination	Pitch [x]	Pitch [x]	Housing Material	Features	FFC, FCB Thickness
Amphenol ICC (FCI) 10064555-392220HLF	Gold	Thermoplastic Halogen Free	10	30 VDC	Straight	Flash	Copper Alloy	39	FPC	0.037 in	0.95 mm	Black	Slide Lock	UL94 V-0	85 °C	-55 °C	Surface Mount Right Angle	0.2 A	Contacts Top	Black	Solder	0.012 in	0.3 mm	Thermoplastic Halogen Free	Solder Retention Zero Insertion Force (ZIF)	0.3 mm
Amphenol ICC (FCI) 10064555-272520HLF		Thermoplastic Halogen Free	10				Copper Alloy	27	FPC			Beige	Flip Lock				Surface Mount Right Angle		Contacts Top	Black	Solder	0.012 in	0.3 mm	Thermoplastic Halogen Free		0.2 mm
Amphenol ICC (FCI) 10064555-332110ELF	Gold	Thermoplastic	10	30 VDC	Straight	Flash	Copper Alloy	33	FPC	0.037 in	0.95 mm	Black	Slide Lock	UL94 V-0	85 °C	-55 °C	Surface Mount Right Angle	0.2 A	Contacts Top	Black	Solder	0.012 in	0.3 mm	Thermoplastic	Solder Retention Zero Insertion Force (ZIF)	0.3 mm
Amphenol ICC (FCI) 10064555-392210ELF	Gold	Thermoplastic	10	30 VDC	Straight	Flash	Copper Alloy	39	FPC	0.037 in	0.95 mm	Black	Slide Lock	UL94 V-0	85 °C	-55 °C	Surface Mount Right Angle	0.2 A	Contacts Top	Black	Solder	0.012 in	0.3 mm	Thermoplastic	Solder Retention Zero Insertion Force (ZIF)	0.3 mm
Amphenol ICC (FCI) 10064555-332210ELF	Gold	Thermoplastic	10	30 VDC	Straight	Flash	Copper Alloy	33	FPC	0.037 in	0.95 mm	Black	Slide Lock	UL94 V-0	85 °C	-55 °C	Surface Mount Right Angle	0.2 A	Contacts Top	Black	Solder	0.012 in	0.3 mm	Thermoplastic	Solder Retention Zero Insertion Force (ZIF)	0.3 mm
Amphenol ICC (FCI) 10064555-232520HLF								23	FPC				Flip Lock				Surface Mount Right Angle		Contacts Top		Solder	0.012 in	0.3 mm			0.2 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 0.64
		10	$ 0.55
		25	$ 0.51
		50	$ 0.51
	Tape & Reel (TR)	3000	$ 0.59

Description

General part information

10064555 Series

39 Position FPC Connector Contacts, Top 0.012" (0.30mm) Surface Mount, Right Angle
