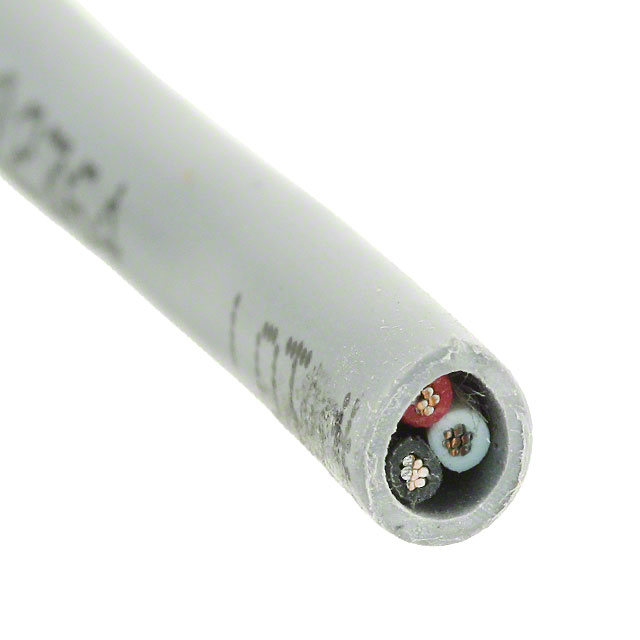

1892/3C SL005

Active

ALPHA WIRE

MULTICONDUCTOR CABLE, CONTROL, UNSHIELDED, 3 CONDUCTOR, 12 AWG, 3.31 MM², 100 FT, 30.5 M

Search across all available documentation for this part.

Active

ALPHA WIRE

MULTICONDUCTOR CABLE, CONTROL, UNSHIELDED, 3 CONDUCTOR, 12 AWG, 3.31 MM², 100 FT, 30.5 M

Technical Specifications

Parameters and characteristics for this part

Specification	1892/3C SL005

Cable Type	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	30 AWG
Conductor Strand [custom]	65
Jacket (Insulation) Diameter [diameter]	8.46 mm
Jacket (Insulation) Diameter [diameter]	0.333 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.023 in
Jacket (Insulation) Thickness	0.584 mm
Jacket Color	Slate
Length [x]	30.5 m
Length [x]	100 ft
Number of Conductors	3
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-20 C
Usage	Control, Communication
Voltage	300 V
Wire Gauge	12 AWG

Part	Voltage	Jacket Color	Wire Gauge	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Operating Temperature [Min]	Operating Temperature [Max]	Conductor Insulation	Usage	Conductor Material	Cable Type	Jacket (Insulation) Material	Length	Length	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Number of Conductors	Conductor Strand [custom]	Conductor Strand [custom]	Length [x]	Length [x]
ALPHA WIRE 1892/3C SL001	300 V	Slate	12 AWG	8.46 mm	0.333 in	-20 C	80 C	Poly-Vinyl Chloride (PVC)	Communication Control	Copper Tinned	Multi-Conductor	Poly-Vinyl Chloride (PVC)	1000 ft	304.8 m	0.023 in	0.584 mm	3	30 AWG	65
ALPHA WIRE 1892/3C SL005	300 V	Slate	12 AWG	8.46 mm	0.333 in	-20 C	80 C	Poly-Vinyl Chloride (PVC)	Communication Control	Copper Tinned	Multi-Conductor	Poly-Vinyl Chloride (PVC)			0.023 in	0.584 mm	3	30 AWG	65	30.5 m	100 ft

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	100	$ 7.06
Newark	Spool of 100	1	$ 916.99

General part information

3 Conductor Multi-Conductor Cable Slate 12 AWG 100.0' (30.5m)
