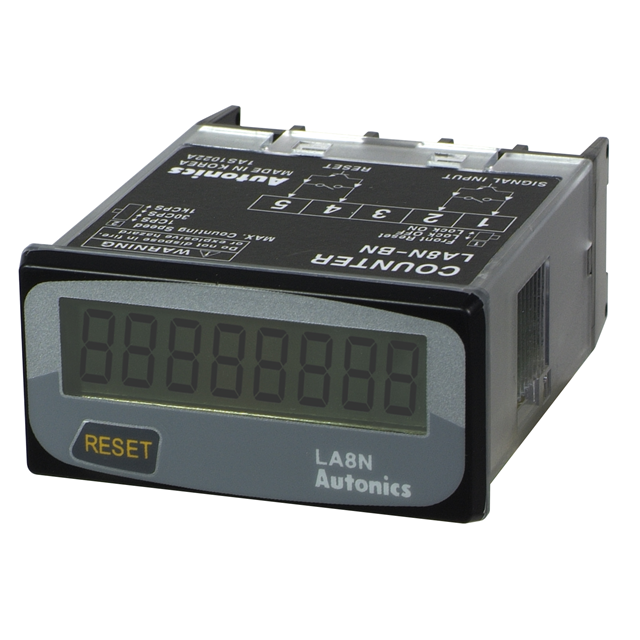

LA8N-BN

Active

AUTONICS

COUNTER, DIGITAL, LCD, L8AN SERIES, 8 DIGITS, NO VOLTAGE, 3 V, DIN W48 X H24MM

Search across all available documentation for this part.

Active

AUTONICS

COUNTER, DIGITAL, LCD, L8AN SERIES, 8 DIGITS, NO VOLTAGE, 3 V, DIN W48 X H24MM

Technical Specifications

Parameters and characteristics for this part

Specification	LA8N-BN

Count Rate	Multiple
Display Characters - Height [z]	8.7 mm
Display Characters - Height [z]	0.343 in
Display Type	LCD - Black Characters
Ingress Protection	IP65 - Dust Tight, Water Resistant
Input Type	No Voltage
Number of Characters Per Row	8
Operating Mode	Up, Down
Panel Cutout Dimensions [x]	45 mm
Panel Cutout Dimensions [y]	22.2 mm
Reset	External, Front Panel
Termination Style	Screw Terminal
Time Format	Multiple
Type	Totalizer
Voltage - Supply	None Required (Battery Included)

Part	Display Type	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Number of Characters Per Row	Type	Count Rate	Ingress Protection	Display Characters - Height [z]	Display Characters - Height [z]	Reset	Termination Style	Input Type	Time Format	Voltage - Supply	Operating Mode	Count Rate
AUTONICS LA8N-BF	LCD - Black Characters	22.2 mm	45 mm	8	Totalizer	20 Hz	IP65 - Dust Tight Water Resistant	8.7 mm	0.343 in	External Front Panel	Screw Terminal	Voltage	Multiple	None Required (Battery Included)	Up
AUTONICS LA8N-BN	LCD - Black Characters	22.2 mm	45 mm	8	Totalizer		IP65 - Dust Tight Water Resistant	8.7 mm	0.343 in	External Front Panel	Screw Terminal	No Voltage	Multiple	None Required (Battery Included)	Down Up	Multiple

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 63.00
Newark	Each	1	$ 63.00

General part information

Totalizer None Required (Battery Included) Panel Mount
