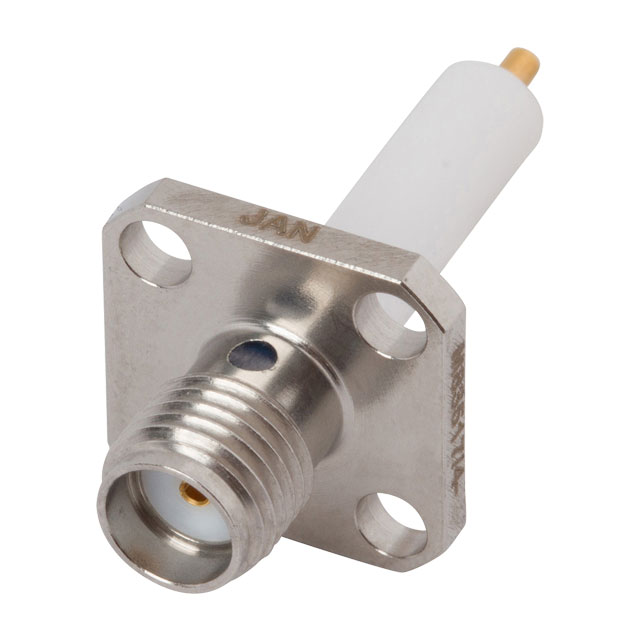

M83517/4-31005

Active

Amphenol SV Microwave

CONN SMA JACK STR 50OHM SOLDER

Search across all available documentation for this part.

Active

Amphenol SV Microwave

CONN SMA JACK STR 50OHM SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	M83517/4-31005

Body Material	Stainless Steel
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	SMA
Connector Type	Female Socket, Jack
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Features	Extended Insulation
Frequency - Max [Max]	18 GHz
Housing Color	Silver
Impedance	50 Ohms
Mating Cycles	500
Mounting Feature	Flange
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Solder

Part	Features	Contact Termination	Mating Cycles	Operating Temperature [Min]	Operating Temperature [Max]	Frequency - Max [Max]	Shield Termination	Mounting Feature	Connector Type	Body Material	Impedance	Dielectric Material	Center Contact Material	Connector Style	Center Contact Plating	Housing Color
Amphenol SV Microwave M83517/4-31005	Extended Insulation	Solder	500	-65 ░C	165 °C	18 GHz	Solder	Flange	Female Socket Jack	Stainless Steel	50 Ohms	Polytetrafluoroethylene (PTFE)	Beryllium Copper	SMA	Gold	Silver

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

SMA Connector Jack, Female Socket 50 Ohms Panel Mount Solder
