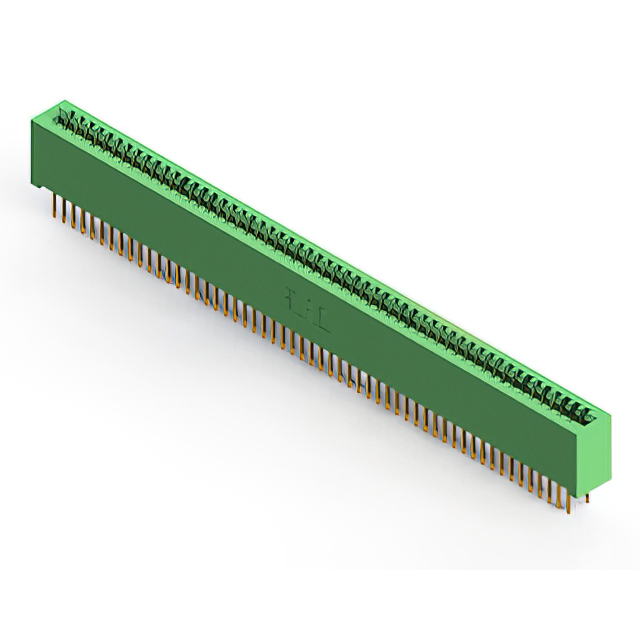

342-110-523-201
ActiveEDAC Inc.
CONN EDGE DUAL FML 110POS 0.100
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
342-110-523-201
ActiveEDAC Inc.
CONN EDGE DUAL FML 110POS 0.100
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 342-110-523-201 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole |
| Number of Positions | 110 positions |
| Number of Positions/Bay/Row [custom] | 55 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Read Out | Dual |
| Termination | Solder |
| Termination Rows | 2 |
342-110 Series
| Part | Mounting Type | Contact Finish Thickness | Contact Finish Thickness | Number of Rows | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Termination | Operating Temperature [Min] | Operating Temperature [Max] | Gender | Contact Type | Material - Insulation | Contact Finish | Number of Positions/Bay/Row [custom] | Color | Number of Positions | Contact Material | Pitch [x] | Pitch [x] | Termination Rows | Read Out | Card Type | Flange Feature [diameter] | Flange Feature | Flange Feature [diameter] | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Through Hole | 10 Áin | 0.25 Ám | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Solder Eyelet(s) | -40 °C | 105 ░C | Female | Cantilever | Polyester Thermoplastic | Gold | 55 | Green | 110 positions | Copper Alloy | 2.54 mm | 0.1 in | 2 | Dual | Non Specified - Dual Edge | 0.116 in | Floating Bobbin Flush Mount | 2.95 mm | |
EDAC Inc. | Through Hole | 10 Áin | 0.25 Ám | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Solder | -40 °C | 105 ░C | Female | Cantilever | Polyester Thermoplastic | Gold | 55 | Green | 110 positions | Copper Alloy | 2.54 mm | 0.1 in | 2 | Dual | Non Specified - Dual Edge | 0.116 in | Floating Bobbin Flush Mount | 2.95 mm | |
EDAC Inc. | Through Hole | 10 Áin | 0.25 Ám | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Wire Wrap | -40 °C | 105 ░C | Female | Cantilever | Polyester Thermoplastic | Gold | 55 | Green | 110 positions | Copper Alloy | 2.54 mm | 0.1 in | 2 | Dual | Non Specified - Dual Edge | ||||
EDAC Inc. | Through Hole | 10 Áin | 0.25 Ám | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Solder | -40 °C | 105 ░C | Female | Cantilever | Polyester Thermoplastic | Gold | 55 | Green | 110 positions | Copper Alloy | 2.54 mm | 0.1 in | 2 | Dual | Non Specified - Dual Edge | 0.128 " | Flush Mount Top Opening Unthreaded | 3.25 mm | |
EDAC Inc. | Through Hole | 10 Áin | 0.25 Ám | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Solder Eyelet(s) | -40 °C | 105 ░C | Female | Cantilever | Polyester Thermoplastic | Gold | 55 | Green | 110 positions | Copper Alloy | 2.54 mm | 0.1 in | 2 | Dual | Non Specified - Dual Edge | 4-40 Flush Mount Threaded Insert Top Opening | |||
EDAC Inc. | Board Edge Straddle Mount | 10 Áin | 0.25 Ám | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Solder | -40 °C | 105 ░C | Female | Cantilever | Polyester Thermoplastic | Gold | 55 | Green | 110 positions | Copper Alloy | 2.54 mm | 0.1 in | 2 | Dual | Non Specified - Dual Edge | 0.128 " | Flush Mount Side Opening Unthreaded | 3.25 mm | Card Extender |
EDAC Inc. | Through Hole | 10 Áin | 0.25 Ám | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Solder | -40 °C | 105 ░C | Female | Cantilever | Polyester Thermoplastic | Gold | 55 | Green | 110 positions | Copper Alloy | 2.54 mm | 0.1 in | 2 | Dual | Non Specified - Dual Edge | 4-40 Flush Mount Threaded Insert Top Opening | |||
EDAC Inc. | Through Hole | 10 Áin | 0.25 Ám | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Solder | -40 °C | 105 ░C | Female | Cantilever | Polyester Thermoplastic | Gold | 55 | Green | 110 positions | Copper Alloy | 2.54 mm | 0.1 in | 2 | Dual | Non Specified - Dual Edge | 0.156 in | Flush Mount Top Opening Unthreaded | 3.96 mm | |
EDAC Inc. | Through Hole | 10 Áin | 0.25 Ám | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Solder | -40 °C | 105 ░C | Female | Cantilever | Polyester Thermoplastic | Gold | 55 | Green | 110 positions | Copper Alloy | 2.54 mm | 0.1 in | 2 | Dual | Non Specified - Dual Edge | ||||
EDAC Inc. | Board Edge Straddle Mount | 10 Áin | 0.25 Ám | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Solder | -40 °C | 105 ░C | Female | Cantilever | Polyester Thermoplastic | Gold | 55 | Green | 110 positions | Copper Alloy | 2.54 mm | 0.1 in | 2 | Dual | Non Specified - Dual Edge | Flush Mount M3 Threaded Insert Top Opening | Card Extender |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 25 | $ 17.91 | |
Description
General part information
342-110 Series
110 Position Female Connector Non Specified - Dual Edge Gold 0.100" (2.54mm) Green
