LTM8005EY#PBF
Obsolete38VINBOOST ΜMODULE REGULATOR FOR LED DRIVE WITH 10A SWITCH
Deep-Dive with AI
Search across all available documentation for this part.
LTM8005EY#PBF
Obsolete38VINBOOST ΜMODULE REGULATOR FOR LED DRIVE WITH 10A SWITCH
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | LTM8005EY#PBF |
|---|---|
| Current - Output / Channel | 1.6 A |
| Dimming | PWM |
| Frequency [Max] | 1.2 MHz |
| Frequency [Min] | 85 kHz |
| Internal Switch(s) | True |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 125 ¯C |
| Operating Temperature [Min] | -40 °C |

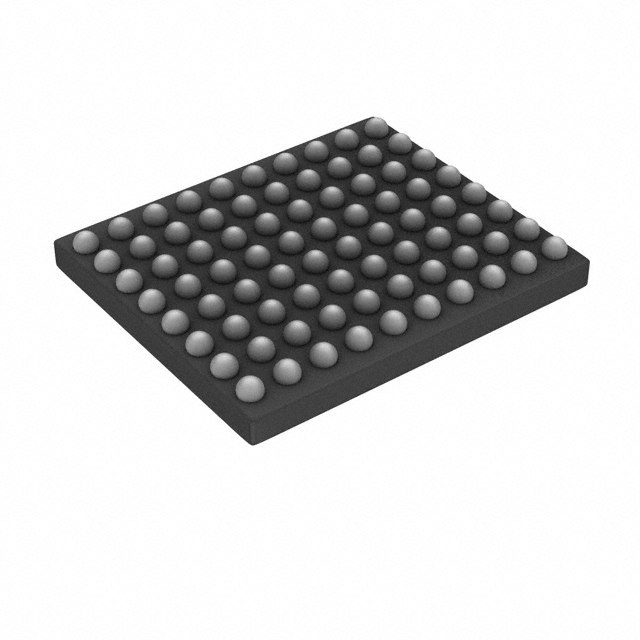

| Package / Case | 80-BGA |
| Supplier Device Package | 80-BGA |
| Supplier Device Package [x] | 11.25 |
| Supplier Device Package [y] | 9 |
| Topology | SEPIC, Boost |
| Type | DC DC Regulator |
| Voltage - Output | 38 V |
| Voltage - Supply (Max) [Max] | 38 V |
| Voltage - Supply (Min) [Min] | 5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
LTM8005 Series
The LTM8005 is a 38VIN, 38VOUTboost μModule (power micromodule) LED driver designed to regulate current or voltage and is ideal for driving LEDs. The fixed frequency and current mode architecture result in stable operation over a wide range of supply and output voltages. Spread spectrum frequency modulation (SSFM) can be activated for improved electromagnetic compatibility (EMC) performance. The ground-referred voltage FB pin serves as the input for several LED protection features, and also allows the converter to operate as a constant voltage source. The PWM input provides LED dimming ratios of up to 3000:1, and the CTRL inputs provide additional analog dimming capability.The low profile package enables utilization of unused space on the bottom of PC boards. The LTM8005 is packaged in thermally enhanced, compact over-molded Ball Grid Array (BGA) package suitable for automated assembly by standard surface mount equipment. The LTM8005 is RoHS compliant.APPLICATIONSHigh Power LED, High Voltage LEDAccurate Current-Limited Voltage Regulators
