152099-230
ActiveLedex Dormeyer Saia, a Division of Johnson Electric

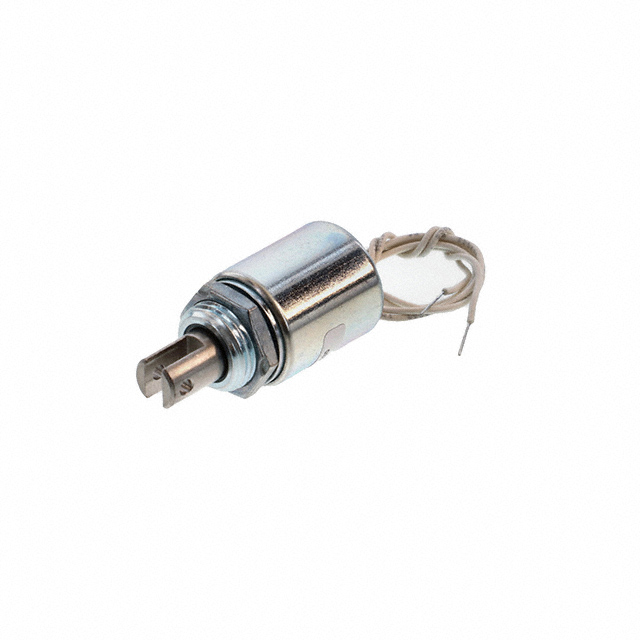

TUBULAR SOLENOID STA PULL 1 X 1-
Deep-Dive with AI
Search across all available documentation for this part.
152099-230
ActiveLedex Dormeyer Saia, a Division of Johnson Electric
TUBULAR SOLENOID STA PULL 1 X 1-
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 152099-230 |
|---|---|
| Bushing Thread | 3/4-16 UNF |
| DC Resistance (DCR) | 22.8 Ohm |
| Diameter - Shaft [diameter] | 11.1 mm |
| Diameter - Shaft [diameter] | 0.437 in |
| Shaft Detail | Clevis |
| Size / Dimension [diameter] | 1 in |
| Size / Dimension [diameter] | 25.4 mm |
| Size / Dimension [x] | 1.125 in |
| Size / Dimension [x] | 28.58 mm |
| Technology | Electromechanical |
| Termination Style | Wire Leads |
| Type | Closed Frame (Pull), Tubular |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 65.19 | |
| 10 | $ 58.06 | |||
| 25 | $ 55.43 | |||
| 50 | $ 53.53 | |||
| 100 | $ 51.69 | |||
Description
General part information
152099 Series
Duty Solenoid Closed Frame (Pull), Tubular Type Stroke Panel Mount
Documents
Technical documentation and resources
No documents available
