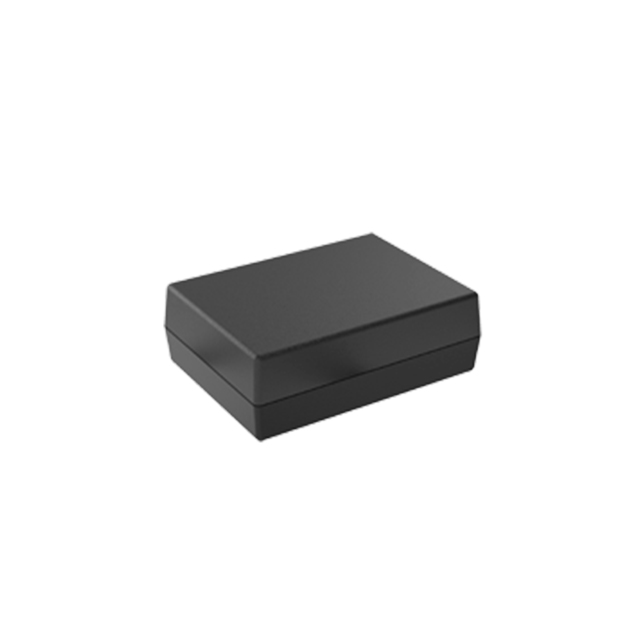

RB55P06B10B

Active

Serpac

BOX PLASTIC BLACK

Search across all available documentation for this part.

Active

Serpac

BOX PLASTIC BLACK

Technical Specifications

Parameters and characteristics for this part

Specification	RB55P06B10B

Area (L x W)	144 cm²
Area (L x W)	22.3 in²
Color	Black
Container Type	Box
Design	Cover Included
Height [diameter]	1.59 in
Height [diameter]	40.39 mm
Material	Plastic, Polycarbonate
Material Flammability Rating	UL94 V-0
Ratings	IP67, NEMA 4
Thickness	0.12 in
Thickness	3.05 mm

Part	Design	Thickness	Thickness	Material Flammability Rating	Container Type	Area (L x W)	Area (L x W)	Color	Material	Height [diameter]	Height [diameter]	Ratings	Height [z]	Height [z]
Serpac RB55P06B10B	Cover Included	0.12 in	3.05 mm	UL94 V-0	Box	144 cm²	22.3 in²	Black	Plastic Polycarbonate	1.59 in	40.39 mm	IP67 NEMA 4
Serpac RB55P06B16B	Cover Included	0.12 in	3.05 mm	UL94 V-0	Box	144 cm²	22.3 in²	Black	Plastic Polycarbonate			IP67 NEMA 4	2.17 in	55.12 mm
Serpac RB55P06B28B	Cover Included	0.12 in	3.05 mm	UL94 V-0	Box	144 cm²	22.3 in²	Black	Plastic Polycarbonate			IP67 NEMA 4	3.35 in	85.09 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Box Plastic, Polycarbonate Black Cover Included X 1.590" (40.39mm)
