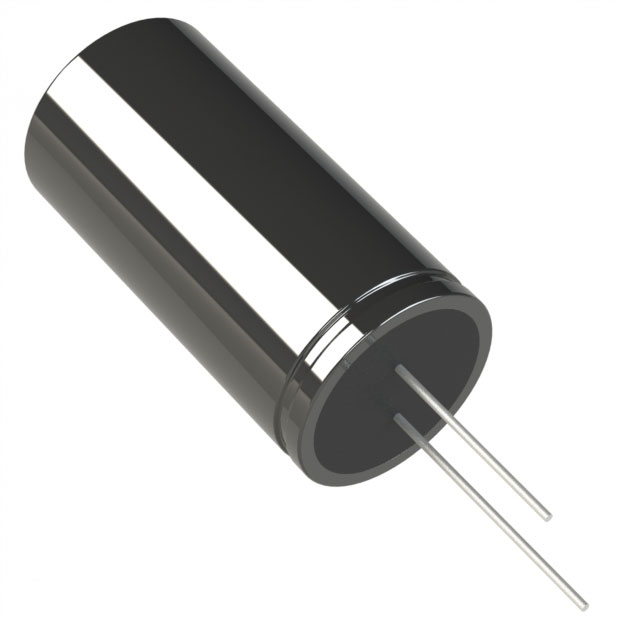

REA1632472M016B

Active

Kyocera AVX

CAPACITOR: ELECTROLYTIC; THT; 4700UF; 16VDC; Ø16X32MM; ±20%; REA

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

REA1632472M016B

Active

Kyocera AVX

CAPACITOR: ELECTROLYTIC; THT; 4700UF; 16VDC; Ø16X32MM; ±20%; REA

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	REA1632472M016B

Applications	General Purpose
Capacitance	4700 µF
Height - Seated (Max) [Max] [z]	1.339 in
Height - Seated (Max) [Max] [z]	34 mm
Lead Spacing	7.5 mm
Lead Spacing	0.295 in
Lifetime @ Temp.	5000 Hrs
Mounting Type	Through Hole
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Package / Case	Radial, Can
Polarization	Polar
Ripple Current @ High Frequency	2.198 A
Ripple Current @ Low Frequency	1.57 A
Size / Dimension [diameter]	0.63 in
Size / Dimension [diameter]	16 mm
Tolerance	20 %
Voltage - Rated	16 V

rea Series

Part	Capacitance	Mounting Type	Tolerance	Ripple Current @ Low Frequency	Polarization	Lead Spacing	Lead Spacing	Operating Temperature [Min]	Operating Temperature [Max]	Applications	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Size / Dimension [diameter]	Size / Dimension [diameter]	Lifetime @ Temp.	Package / Case	Voltage - Rated	Ripple Current @ High Frequency	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]
Kyocera AVX REA1325222M016K	2200 µF	Through Hole	20 %	1.13 A	Polar	5 mm	0.197 in	-40 °C	105 ░C	General Purpose	1.063 in	27 mm	0.512 in	13 mm	5000 Hrs	Radial Can	16 V	1.582 A
Kyocera AVX REA1632472M016B	4700 µF	Through Hole	20 %	1.57 A	Polar	7.5 mm	0.295 in	-40 °C	105 ░C	General Purpose	1.339 in	34 mm	0.63 in	16 mm	5000 Hrs	Radial Can	16 V	2.198 A
Kyocera AVX REA1321222M010B	2.2 mF	Through Hole	20 %		Polar	5 mm	0.197 in	-40 °C	105 ░C	General Purpose			0.512 in	13 mm	5000 Hrs	Radial Can	10 V	1.358 A	23 mm	0.906 in
Kyocera AVX REA1626472M010B	4700 µF	Through Hole	20 %	1.4 A	Polar	7.5 mm	0.295 in	-40 °C	105 ░C	General Purpose	1.102 in	28 mm	0.63 in	16 mm	5000 Hrs	Radial Can	10 V	1.96 A
Kyocera AVX REA1632103M006B	10000 µF	Through Hole	20 %	1.79 A	Polar	7.5 mm	0.295 in	-40 °C	105 ░C	General Purpose	1.339 in	34 mm	0.63 in	16 mm	5000 Hrs	Radial Can	6.3 V
Kyocera AVX REA1835103M010B	10000 µF	Through Hole	20 %	2.01 A	Polar	7.5 mm	0.295 in	-40 °C	105 ░C	General Purpose	1.457 in	37 mm	0.709 "	18 mm	5000 Hrs	Radial Can	10 V	2.412 A
Kyocera AVX REA1840472M035B	4700 µF	Through Hole	20 %	2.15 A	Polar	7.5 mm	0.295 in	-40 °C	105 ░C	General Purpose			0.709 "	18 mm	5000 Hrs	Radial Can	35 V	3.01 A	42 mm	1.654 in
Kyocera AVX REA1020222M006B	2.2 mF	Through Hole	20 %	830 mA	Polar	5 mm	0.197 in	-40 °C	105 ░C	General Purpose	0.866 in	22 mm	0.394 in	10 mm	4000 Hrs	Radial Can	6.3 V	1.162 A

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	1	$ 1.94
		10	$ 1.24
		50	$ 0.95
		390	$ 0.74
		780	$ 0.68
		1170	$ 0.66
		2730	$ 0.61
		5070	$ 0.59
TME	N/A	390	$ 1.03

Description

General part information

rea Series

4.7 mF 16 V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C
