11807 BR005

Obsolete

ALPHA WIRE

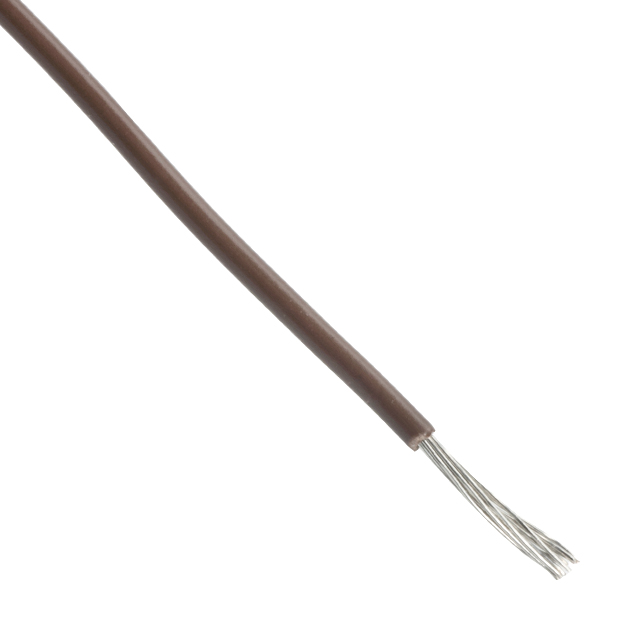

HOOK-UP STRND 18AWG BROWN 100'

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Hook-Up Wire

11807 BR005

Obsolete

ALPHA WIRE

HOOK-UP STRND 18AWG BROWN 100'

Deep-Dive with AI

DocumentsDatasheet Hook-Up Wire

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	11807 BR005

Cable Type	Hook-Up
Conductor Material	Copper, Silver Coated
Conductor Strand [custom]	26 AWG
Conductor Strand [custom]	7
Jacket (Insulation) Diameter [diameter]	1.73 mm
Jacket (Insulation) Diameter [diameter]	0.068 in
Jacket (Insulation) Material	Polytetrafluoroethylene (PTFE)
Jacket (Insulation) Thickness	0.25 mm
Jacket (Insulation) Thickness	0.01 in
Jacket Color	Brown
Length [x]	30.5 m
Length [x]	100 ft
Operating Temperature [Max]	200 °C
Operating Temperature [Min]	-60 °C
Qualification	MIL-DTL-16878/4 Type E
Voltage	600 V
Wire Gauge	18 AWG

11807 Series

Part	Jacket (Insulation) Material	Wire Gauge	Cable Type	Voltage	Operating Temperature [Max]	Operating Temperature [Min]	Length [x]	Length [x]	Jacket Color	Conductor Strand [custom]	Conductor Strand [custom]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Conductor Material	Qualification	Length	Length
ALPHA WIRE 11807 VI005	Polytetrafluoroethylene (PTFE)	18 AWG	Hook-Up	600 V	200 °C	-60 °C	30.5 m	100 ft	Violet	26 AWG	7	1.73 mm	0.068 in	0.25 mm	0.01 in	Copper Silver Coated	MIL-DTL-16878/4 Type E
ALPHA WIRE 11807 BR001	Polytetrafluoroethylene (PTFE)	18 AWG	Hook-Up	600 V	200 °C	-60 °C			Brown	26 AWG	7	1.73 mm	0.068 in	0.25 mm	0.01 in	Copper Silver Coated	MIL-DTL-16878/4 Type E	1000 ft	304.8 m
ALPHA WIRE 11807 BL001	Polytetrafluoroethylene (PTFE)	18 AWG	Hook-Up	600 V	200 °C	-60 °C			Blue	26 AWG	7	1.73 mm	0.068 in	0.25 mm	0.01 in	Copper Silver Coated	MIL-DTL-16878/4 Type E	1000 ft	304.8 m
ALPHA WIRE 11807 RD001	Polytetrafluoroethylene (PTFE)	18 AWG	Hook-Up	600 V	200 °C	-60 °C			Red	26 AWG	7	1.73 mm	0.068 in	0.25 mm	0.01 in	Copper Silver Coated	MIL-DTL-16878/4 Type E	1000 ft	304.8 m
ALPHA WIRE 11807 BR005	Polytetrafluoroethylene (PTFE)	18 AWG	Hook-Up	600 V	200 °C	-60 °C	30.5 m	100 ft	Brown	26 AWG	7	1.73 mm	0.068 in	0.25 mm	0.01 in	Copper Silver Coated	MIL-DTL-16878/4 Type E
ALPHA WIRE 11807 YL005	Polytetrafluoroethylene (PTFE)	18 AWG	Hook-Up	600 V	200 °C	-60 °C	30.5 m	100 ft	Yellow	26 AWG	7	1.73 mm	0.068 in	0.25 mm	0.01 in	Copper Silver Coated	MIL-DTL-16878/4 Type E
ALPHA WIRE 11807 OR001	Polytetrafluoroethylene (PTFE)	18 AWG	Hook-Up	600 V	200 °C	-60 °C			Orange	26 AWG	7	1.73 mm	0.068 in	0.25 mm	0.01 in	Copper Silver Coated	MIL-DTL-16878/4 Type E	1000 ft	304.8 m
ALPHA WIRE 11807 GR005	Polytetrafluoroethylene (PTFE)	18 AWG	Hook-Up	600 V	200 °C	-60 °C	30.5 m	100 ft	Green	26 AWG	7	1.73 mm	0.068 in	0.25 mm	0.01 in	Copper Silver Coated	MIL-DTL-16878/4 Type E

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

11807 Series

18 AWG Hook-Up Wire 7/26 Brown 600V 100.0' (30.5m)
