R0603-010-R

Active

OptiFuse

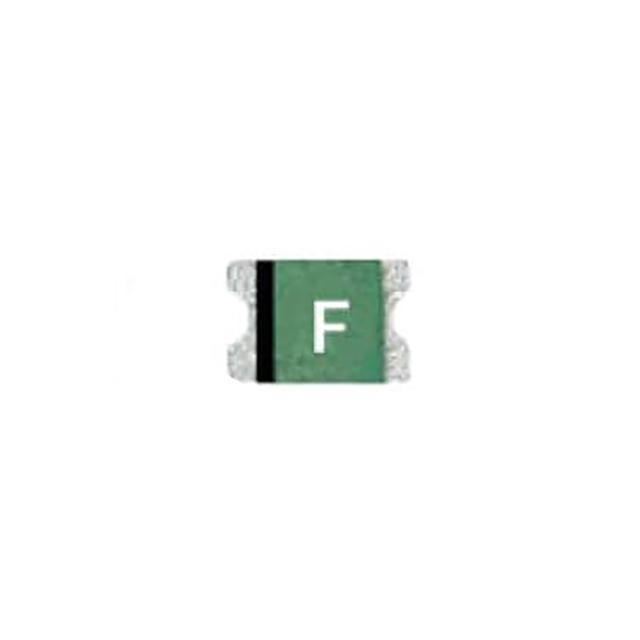

PTC RESET FUSE 15V 100MA 0603

Search across all available documentation for this part.

Active

OptiFuse

PTC RESET FUSE 15V 100MA 0603

Technical Specifications

Parameters and characteristics for this part

Specification	R0603-010-R

Approval Agency	cULus, TUV
Current - Hold (Ih) (Max) [Max]	100 mA
Current - Max [Max]	40 A
Current - Trip (It)	250 mA
Mounting Type	Surface Mount
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	0603, Concave
Package / Case	1608 Metric
Resistance - Initial (Ri) (Min) [Min]	900 mOhms
Resistance - Post Trip (R1) (Max) [Max]	8 Ohms
Size / Dimension [x]	0.063 in
Size / Dimension [x]	1.6 mm
Size / Dimension [y]	0.73 mm
Size / Dimension [y]	0.029 "
Thickness (Max) [Max]	0.75 mm
Thickness (Max) [Max]	0.03 in
Time to Trip	100 ms
Type	Polymeric
Voltage - Max [Max]	15 V

Part	Package / Case	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Time to Trip	Resistance - Post Trip (R1) (Max) [Max]	Voltage - Max [Max]	Type	Resistance - Initial (Ri) (Min) [Min]	Current - Trip (It)	Approval Agency	Thickness (Max) [Max]	Thickness (Max) [Max]	Current - Hold (Ih) (Max) [Max]	Current - Max [Max]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]
OptiFuse R0603-010-R	0603 Concave	1608 Metric	85 °C	-40 °C	Surface Mount	100 ms	8 Ohms	15 V	Polymeric	900 mOhms	250 mA	cULus TUV	0.75 mm	0.03 in	100 mA	40 A	0.063 in	0.73 mm	1.6 mm	0.029 "
OptiFuse R0603LR-035-R	0603 Concave	1608 Metric	85 °C	-40 °C	Surface Mount	100 ms	1 Ohms	6 V	Polymeric	200 mOhms	750 mA	TUV UL	0.75 mm	0.03 in	350 mA	100 A	0.063 in	0.73 mm	1.6 mm	0.029 "

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	4000	$ 0.20

General part information

Polymeric PTC Resettable Fuse 15V 100 mA Ih Surface Mount 0603 (1608 Metric), Concave
