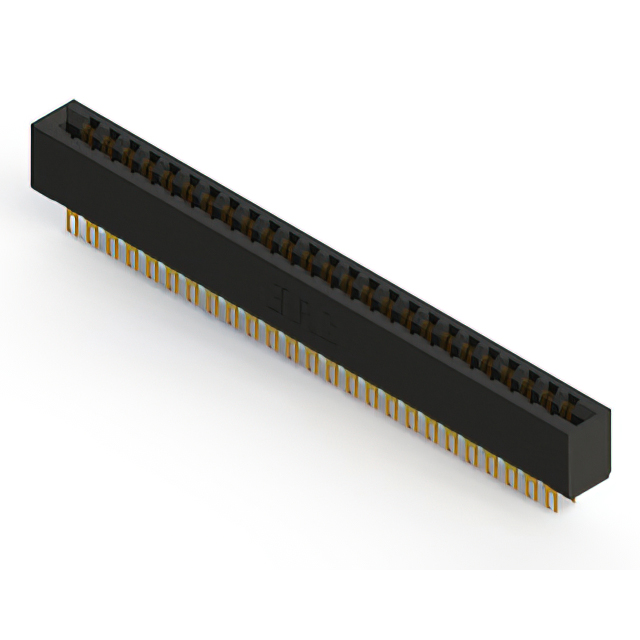

355-050-500-201

Active

EDAC Inc.

CONN EDGE DUAL FMALE 50POS 0.156

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsCard Edge Brochure Datasheet

355-050-500-201

Active

EDAC Inc.

CONN EDGE DUAL FMALE 50POS 0.156

Deep-Dive with AI

DocumentsCard Edge Brochure Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	355-050-500-201

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Dual Edge
Color	Black
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Semi Bellows
Gender	Female
Material - Insulation	Polyester Thermoplastic
Mounting Type	Free Hanging (In-Line)
Number of Positions	50
Number of Positions/Bay/Row [custom]	25
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.156 in
Pitch [x]	3.96 mm
Read Out	Dual
Termination	Solder Eyelet(s)
Termination Rows	2

355-050 Series

Part	Termination Rows	Number of Rows	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Gender	Operating Temperature [Min]	Operating Temperature [Max]	Pitch [x]	Pitch [x]	Read Out	Termination	Contact Material	Card Type	Number of Positions/Bay/Row [custom]	Number of Positions	Material - Insulation	Contact Finish	Color	Contact Type	Contact Finish Thickness	Contact Finish Thickness	Mounting Type	Flange Feature	Features	Flange Feature [diameter]	Flange Feature [diameter]
EDAC Inc. 355-050-500-201	2	2	1.37 mm	0.054 "	1.78 mm	0.07 in	Female	-40 °C	105 ░C	0.156 in	3.96 mm	Dual	Solder Eyelet(s)	Copper Alloy	Non Specified - Dual Edge	25	50	Polyester Thermoplastic	Gold	Black	Semi Bellows	10 Áin	0.25 Ám	Free Hanging (In-Line)
EDAC Inc. 355-050-521-258	2	2	1.37 mm	0.054 "	1.78 mm	0.07 in	Female	-40 °C	105 ░C	0.156 in	3.96 mm	Dual	Solder	Copper Alloy	Non Specified - Dual Edge	25	50	Polyester Thermoplastic	Gold	Black	Semi Bellows	10 Áin	0.25 Ám	Panel Mount Through Hole	4-40 Flush Mount Threaded Insert Top Opening
EDAC Inc. 355-050-555-558	2	2	1.37 mm	0.054 "	1.78 mm	0.07 in	Female	-40 °C	105 ░C	0.156 in	3.96 mm	Dual	Solder	Copper Alloy	Non Specified - Dual Edge	25	50	Polyester Thermoplastic	Gold	Black	Semi Bellows	10 Áin	0.25 Ám	Board Edge Straddle Mount	4-40 Flush Mount Threaded Insert Top Opening
EDAC Inc. 355-050-500-268	2	2	1.37 mm	0.054 "	1.78 mm	0.07 in	Female	-40 °C	105 ░C	0.156 in	3.96 mm	Dual	Solder Eyelet(s)	Copper Alloy	Non Specified - Dual Edge	25	50	Polyester Thermoplastic	Gold	Black	Semi Bellows	10 Áin	0.25 Ám		4-40 Flush Mount Threaded Insert Top Opening
EDAC Inc. 355-050-555-501	2	2	1.37 mm	0.054 "	1.78 mm	0.07 in	Female	-40 °C	105 ░C	0.156 in	3.96 mm	Dual	Solder	Copper Alloy	Non Specified - Dual Edge	25	50	Polyester Thermoplastic	Gold	Black	Semi Bellows	10 Áin	0.25 Ám	Board Edge Straddle Mount		Card Extender
EDAC Inc. 355-050-555-503	2	2	1.37 mm	0.054 "	1.78 mm	0.07 in	Female	-40 °C	105 ░C	0.156 in	3.96 mm	Dual	Solder	Copper Alloy	Non Specified - Dual Edge	25	50	Polyester Thermoplastic	Gold	Black	Semi Bellows	10 Áin	0.25 Ám	Board Edge Straddle Mount	Floating Bobbin Flush Mount	Card Extender	0.116 in	2.95 mm
EDAC Inc. 355-050-521-268	2	2	1.37 mm	0.054 "	1.78 mm	0.07 in	Female	-40 °C	105 ░C	0.156 in	3.96 mm	Dual	Solder	Copper Alloy	Non Specified - Dual Edge	25	50	Polyester Thermoplastic	Gold	Black	Semi Bellows	10 Áin	0.25 Ám	Panel Mount Through Hole	4-40 Flush Mount Threaded Insert Top Opening
EDAC Inc. 355-050-520-202	2	2	1.37 mm	0.054 "	1.78 mm	0.07 in	Female	-40 °C	105 ░C	0.156 in	3.96 mm	Dual	Solder	Copper Alloy	Non Specified - Dual Edge	25	50	Polyester Thermoplastic	Gold	Black	Semi Bellows	10 Áin	0.25 Ám	Panel Mount Through Hole	Flush Mount Top Opening Unthreaded		0.128 "	3.25 mm
EDAC Inc. 355-050-521-204	2	2	1.37 mm	0.054 "	1.78 mm	0.07 in	Female	-40 °C	105 ░C	0.156 in	3.96 mm	Dual	Solder	Copper Alloy	Non Specified - Dual Edge	25	50	Polyester Thermoplastic	Gold	Black	Semi Bellows	10 Áin	0.25 Ám	Panel Mount Through Hole	Flush Mount Top Opening Unthreaded		0.156 in	3.96 mm
EDAC Inc. 355-050-555-203	2	2	1.37 mm	0.054 "	1.78 mm	0.07 in	Female	-40 °C	105 ░C	0.156 in	3.96 mm	Dual	Solder	Copper Alloy	Non Specified - Dual Edge	25	50	Polyester Thermoplastic	Gold	Black	Semi Bellows	10 Áin	0.25 Ám	Board Edge Straddle Mount	Floating Bobbin Flush Mount	Card Extender	0.116 in	2.95 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 11.74

Description

General part information

355-050 Series

50 Position Female Connector Non Specified - Dual Edge Gold 0.156" (3.96mm) Black

Documents

Technical documentation and resources

Card Edge Brochure

Datasheet
