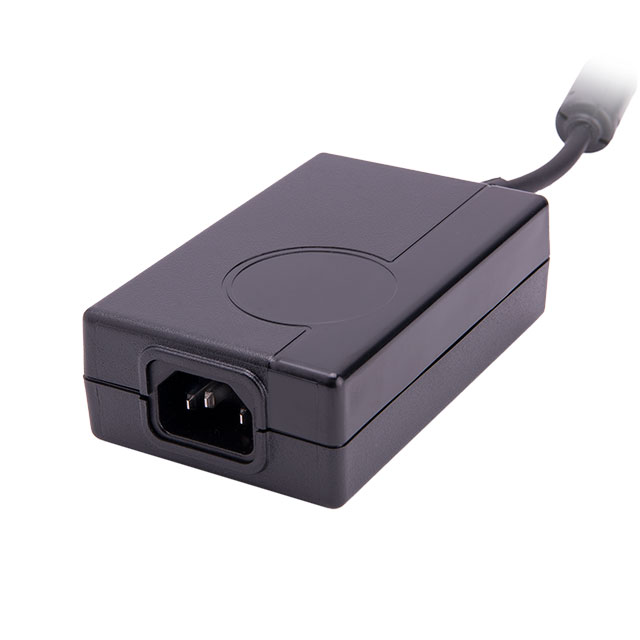

MW160RA2403F01
ObsoleteSL POWER / Advanced Energy
AC/DC DESKTOP ADAPTER 24V 48W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MW160RA2403F01
ObsoleteSL POWER / Advanced Energy
AC/DC DESKTOP ADAPTER 24V 48W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MW160RA2403F01 |
|---|---|
| Applications | Medical |
| Approval Agency | CE |
| Cord Length | 1.83 m |
| Cord Length | 72 in |
| Current - Output (Max) [Max] | 2 A |
| Form | Desktop (Class I) |
| Input Connector | IEC 320-C14 |
| Input Type | Cord |
| Operating Temperature [Max] | 40 °C |
| Operating Temperature [Min] | 0 °C |
| Output Connector | Barrel Plug |
| Output Connector [diameter] | 5.5 mm, 2.5 mm |
| Output Connector [x] | 9.5 mm |
| Polarization | Positive Center |
| Power (Watts) | 48 W |
| Region Utilized | International |
| Size / Dimension [x] | 4.2 " |
| Size / Dimension [x] | 107 mm |
| Size / Dimension [y] | 66 mm |
| Size / Dimension [y] | 2.6 " |
| Size / Dimension [z] | 37 mm |
| Size / Dimension [z] | 1.46 " |
| Voltage - Input [Max] | 240 VAC |
| Voltage - Input [Min] | 100 VAC |
| Voltage - Output | 24 V |
| Weight | 284.86 g |
| Weight | 0.628 lb |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
MW160RA2403 Series
24V 48 W AC/DC External Desktop (Class I) Adapter Cord (Sold Separately) Input
