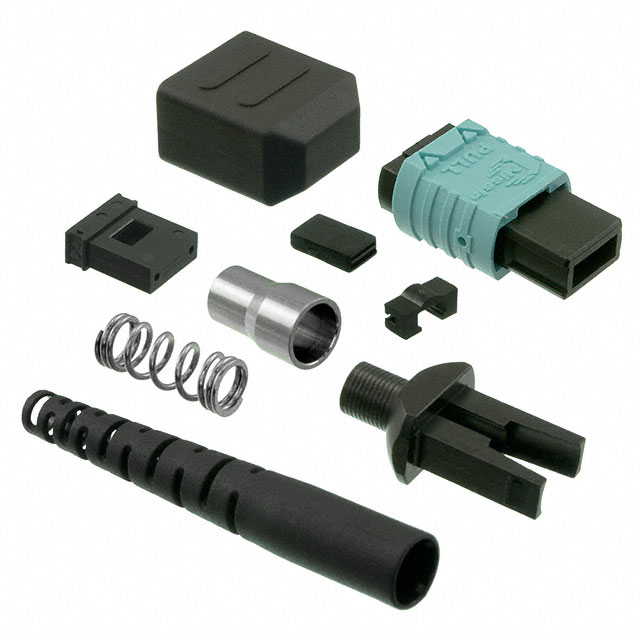

MPO-F-MP-12-A-3S-HD

Obsolete

Volgen + Furuno

12F MPO CONNECTOR, FEMALE, MM PR

Search across all available documentation for this part.

Obsolete

Volgen + Furuno

12F MPO CONNECTOR, FEMALE, MM PR

Technical Specifications

Parameters and characteristics for this part

Specification	MPO-F-MP-12-A-3S-HD

Attenuation - Typ	-1 dB
Cable Diameter [diameter]	3 mm
Connector Style	MPO
Connector Type	Receptacle
Fastening Type	Push-Pull
Features	Strain Relief, Dust Cap
Ferrule Material	Polyphenylene Sulfide (PPS)
Fiber Cladding Diameter [diameter]	126 µm
Fiber Core Diameter [diameter]	50 µm
Housing Color	Aqua
Housing Material	Stainless Steel, Polybutylene Terephthalate (PBT)
Mode	Multimode
Mounting Type	Free Hanging (In-Line)

Part	Housing Material	Connector Type	Fiber Core Diameter [diameter]	Fiber Cladding Diameter [diameter]	Cable Diameter [diameter]	Mounting Type	Fastening Type	Ferrule Material	Connector Style	Features	Mode	Housing Color	Attenuation - Typ
Volgen + Furuno MPO-F-MP-12-A-3S-HD	Polybutylene Terephthalate (PBT) Stainless Steel	Receptacle	50 µm	126 µm	3 mm	Free Hanging (In-Line)	Push-Pull	Polyphenylene Sulfide (PPS)	MPO	Dust Cap Strain Relief	Multimode	Aqua	-1 dB
Volgen + Furuno MPO-F-M-12-A-3S-HD	Polybutylene Terephthalate (PBT) Stainless Steel	Receptacle	50 µm	126 µm	3 mm	Free Hanging (In-Line)	Push-Pull	Polyphenylene Sulfide (PPS)	MPO	Dust Cap Strain Relief	Multimode	Aqua	-1 dB

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Fiber Optic Receptacle Connector MPO 126µm Aqua
