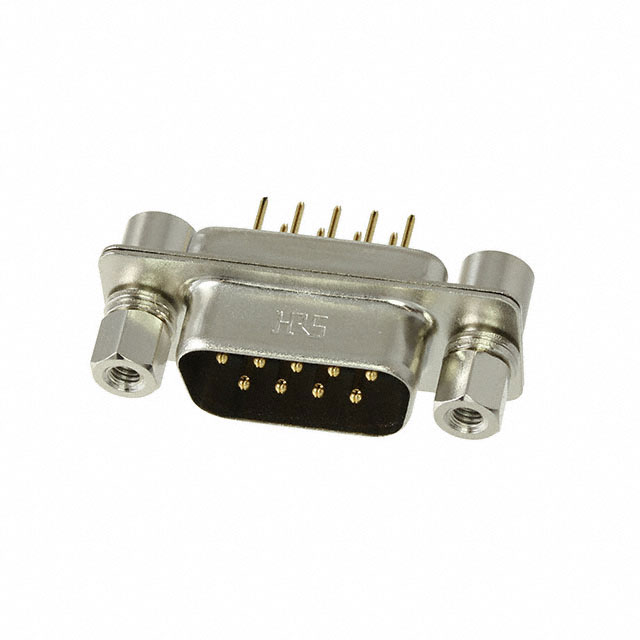

SDEB-9P-SL-LNK(55)

Active

Hirose Electric USA, Inc.

CONN D-SUB PLUG 9P PNL MNT SLDR

Search across all available documentation for this part.

Active

Hirose Electric USA, Inc.

CONN D-SUB PLUG 9P PNL MNT SLDR

Technical Specifications

Parameters and characteristics for this part

Specification	SDEB-9P-SL-LNK(55)

Color	Black
Connector Style	D-Sub
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Finish Thickness	8 çin
Contact Finish Thickness	0.203 çm
Contact Material	Phosphor Bronze
Contact Type	Signal
Current Rating (Amps)	3 A
Dielectric Material	Polybutylene Terephthalate (PBT)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Panel Mount
Number of Positions	9
Number of Rows	2
Shell Material, Finish	Nickel Plated, Steel
Shell Size, Connector Layout [custom]	DE, E
Shell Size, Connector Layout [custom]	1
Termination	Solder
Voltage Rating	350 V

Part	Contact Finish Thickness	Contact Finish Thickness	Shell Material, Finish	Dielectric Material	Connector Type	Contact Finish	Contact Material	Voltage Rating	Termination	Color	Contact Type	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Current Rating (Amps)	Mounting Type	Connector Style	Number of Rows	Material Flammability Rating	Number of Positions
Hirose Electric USA, Inc. SDEB-MI-9P-LNK(4-40)(50)
Hirose Electric USA, Inc. SDEB-9P-SL-LNK(55)	8 çin	0.203 çm	Nickel Plated Steel	Polybutylene Terephthalate (PBT)	Male Pins Plug	Gold	Phosphor Bronze	350 V	Solder	Black	Signal	DE E	1	3 A	Panel Mount Through Hole	D-Sub	2	UL94 V-0	9

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

9 Position D-Sub Plug, Male Pins Connector
