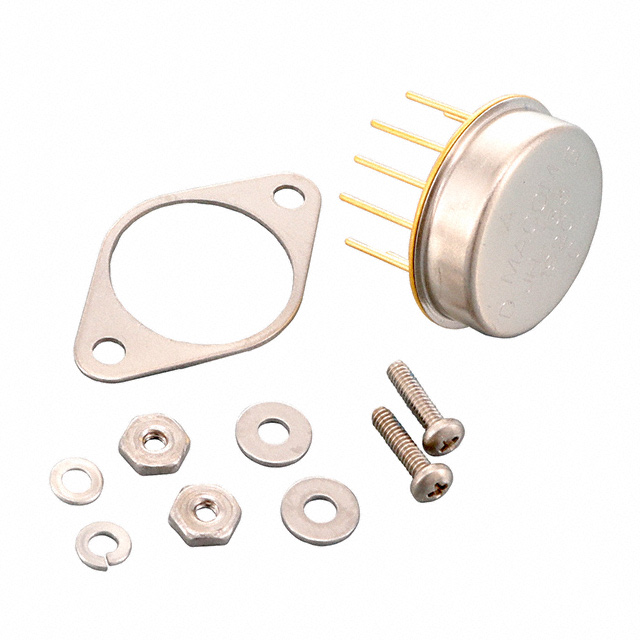

JH-133-PIN
ActiveMACOM Technology Solutions
HYBRID,QUADRATURE
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
JH-133-PIN
ActiveMACOM Technology Solutions
HYBRID,QUADRATURE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | JH-133-PIN |
|---|---|
| Applications | General Purpose |
| Coupler Type | Standard |
| Frequency [Max] | 40 MHz |
| Frequency [Min] | 20 MHz |
| Insertion Loss | 0.5 dB |
| Isolation | 20 dB |
| Package / Case | FP-2 |
| Power - Max [Max] | 5 W |
| Supplier Device Package | FP-2 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 240.24 | |
| 5 | $ 202.67 | |||
Description
General part information
JH-133 Series
RF Directional Coupler General Purpose 20MHz ~ 40MHz 5W FP-2
