M1259-2545-S-12

Active

RAF Electronic Hardware

4.5MM HEX X 12MM X M2.5 THD

Search across all available documentation for this part.

Active

RAF Electronic Hardware

4.5MM HEX X 12MM X M2.5 THD

Technical Specifications

Parameters and characteristics for this part

Part	Threaded/Unthreaded	Length - Overall [x]	Length - Overall [x]	Gender	Type	Material	Between Board Height	Between Board Height	Screw, Thread Size	Plating	Diameter - Outside [diameter]	Diameter - Outside [diameter]	Color
RAF Electronic Hardware M1259-3005-AL	Threaded	12 mm	0.472 in	Female	Hex Standoff	Aluminum	0.472 in	12 mm	M3x0.5
RAF Electronic Hardware M1259-2545-N	Threaded	12 mm	0.472 in	Female	Hex Standoff	Nylon	0.472 in	12 mm	M2.5x0.45
RAF Electronic Hardware M1259-2545-S-12	Threaded	12 mm	0.472 in	Female	Hex Standoff		0.472 in	12 mm	M2.5x0.45	Chromate Zinc	4.5 mm	0.177 in	Clear
RAF Electronic Hardware M1259-3005-S-12	Threaded	12 mm	0.472 in	Female	Hex Standoff		0.472 in	12 mm	M3x0.5	Chromate Zinc			Clear
RAF Electronic Hardware M1259-3005-SS-20	Threaded	12 mm	0.472 in	Female	Hex Standoff	Stainless Steel	0.472 in	12 mm	M3x0.5	Passivated	4.5 mm	0.177 in
RAF Electronic Hardware M1259-3005-SS	Threaded	11.99 mm	0.472 in	Female	Hex Standoff	Stainless Steel	0.472 in	11.99 mm	M3x0.5

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

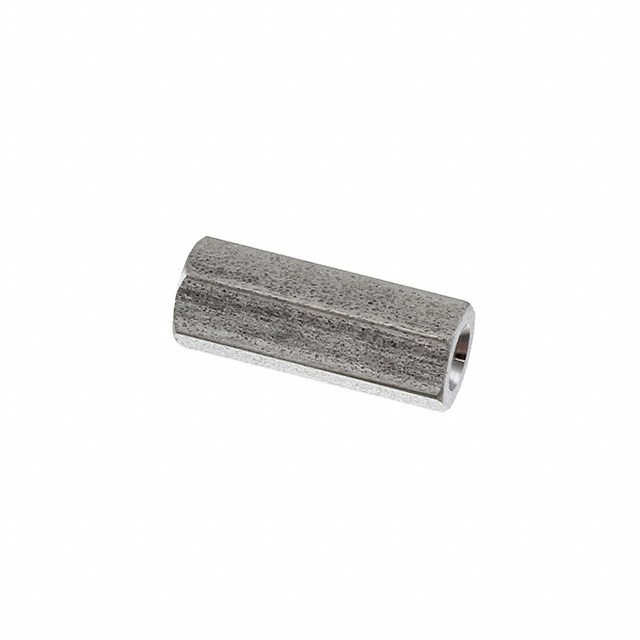

Hex Standoff Threaded M2.5x0.45 Steel 0.472" (12.00mm) Clear

Technical documentation and resources

No documents available
