APA1606SECK

Active

Kingbright

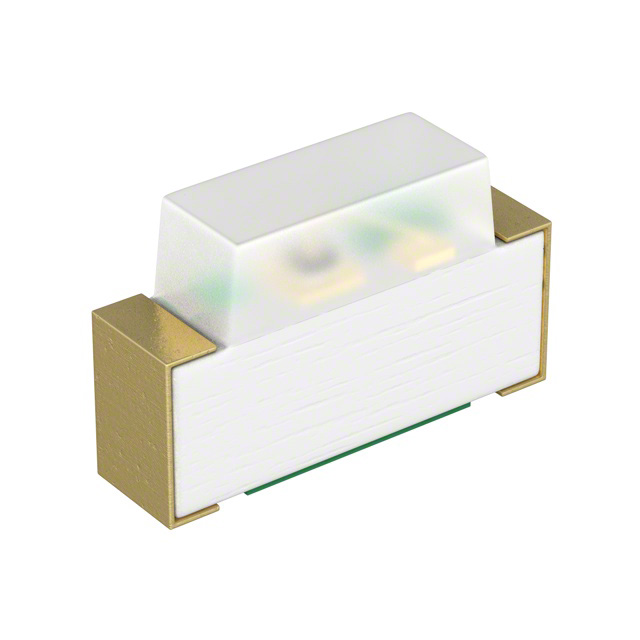

LED ORANGE CLEAR CHIP SMD R/A

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

APA1606SECK

Active

Kingbright

LED ORANGE CLEAR CHIP SMD R/A

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	APA1606SECK

Configuration	Standard
Current - Test	20 mA
Height (Max) [Max]	0.6 mm
Lens Color	Colorless
Lens Size [x]	1.2 mm
Lens Size [y]	0.6 mm
Lens Style	Rectangle with Flat Top
Lens Transparency	Clear
Millicandela Rating	180 mcd
Mounting Type	Surface Mount, Right Angle
Package / Case	2-SMD, No Lead
Size / Dimension [x]	1.6 mm
Size / Dimension [y]	1.2 mm
Supplier Device Package	Chip LED
Viewing Angle	110 °
Voltage - Forward (Vf) (Typ)	2.1 V
Wavelength - Dominant	601 nm
Wavelength - Peak	610 nm

APA1606 Series

Part	Configuration	Package / Case	Wavelength - Peak	Millicandela Rating	Current - Test	Height (Max) [Max] [z]	Lens Style	Lens Transparency	Voltage - Forward (Vf) (Typ)	Size / Dimension [y]	Size / Dimension [x]	Mounting Type	Wavelength - Dominant	Viewing Angle	Color	Lens Size [x]	Lens Size [y]	Supplier Device Package	Lens Color	Height (Max) [Max]
Kingbright APA1606ZGC/G	Standard	2-SMD No Lead	520 nm	650 mcd	20 mA	0.7 mm	Rectangle with Flat Top	Clear	3.2 V	1.2 mm	1.6 mm	Surface Mount Right Angle	525 nm	110 °	Green	1.1 mm	0.6 mm	2-SMD	Colorless
Kingbright APA1606QBC/D	Standard	2-SMD No Lead	460 nm	80 mcd	20 mA		Rectangle with Flat Top	Clear	3.3 V	1.2 mm	1.6 mm	Surface Mount Right Angle	465 nm	110 °	Blue	1.2 mm	0.6 mm	Chip LED	Colorless	0.6 mm
Kingbright APA1606SECK	Standard	2-SMD No Lead	610 nm	180 mcd	20 mA		Rectangle with Flat Top	Clear	2.1 V	1.2 mm	1.6 mm	Surface Mount Right Angle	601 nm	110 °		1.2 mm	0.6 mm	Chip LED	Colorless	0.6 mm
Kingbright APA1606VRBXF/A-5MAV	Standard	2-SMD No Lead		120 mcd	5 mA	0.7 mm	Rectangle with Flat Top	Diffused		1.2 mm	1.6 mm	Surface Mount Right Angle		110 °	Blue	1.1 mm	0.6 mm	Chip LED	Yellow
Kingbright APA1606SYCK	Standard	2-SMD No Lead	590 nm	150 mcd	20 mA		Rectangle with Flat Top	Clear	2 V	1.2 mm	1.6 mm	Surface Mount Right Angle	590 nm	110 °	Yellow	1.2 mm	0.6 mm	Chip LED	Colorless	0.6 mm
Kingbright APA1606ZGC	Standard	2-SMD No Lead	515 nm	400 mcd	20 mA		Rectangle with Flat Top	Clear	3.3 V	1.2 mm	1.6 mm	Surface Mount Right Angle	525 nm	110 °	Green	1.2 mm	0.6 mm	Chip LED	Colorless	0.6 mm
Kingbright APA1606ZGCK	Standard	2-SMD No Lead	515 nm	300 mcd	20 mA	0.7 mm	Rectangle with Flat Top	Clear	3.3 V	1.2 mm	1.6 mm	Surface Mount Right Angle	525 nm	110 °	Green	1.1 mm	0.6 mm	2-SMD	Colorless
Kingbright APA1606PBC/A	Standard	2-SMD No Lead	468 nm	60 mcd	20 mA		Rectangle with Flat Top	Clear	3.2 V	1.2 mm	1.6 mm	Surface Mount Right Angle	470 nm	110 °	Blue	1.2 mm	0.6 mm	Chip LED	Colorless	0.6 mm
Kingbright APA1606VBC/D	Independent	2-SMD No Lead	465 nm	200 mcd	20 mA	0.7 mm	Rectangle with Flat Top	Clear	3.3 V	1.2 mm	1.6 mm	Surface Mount Right Angle	470 nm	110 °	Blue	1.1 mm	0.6 mm	2-SMD	Colorless
Kingbright APA1606SGC	Standard	2-SMD No Lead	565 nm	12 mcd	20 mA		Rectangle with Flat Top	Clear	2.2 V	1.2 mm	1.6 mm	Surface Mount Right Angle	568 nm	110 °	Green	1.2 mm	0.6 mm	Chip LED	Colorless	0.6 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 0.38
		10	$ 0.25
		100	$ 0.16
		500	$ 0.11
		1000	$ 0.09
	Digi-Reel®	1	$ 0.38
		10	$ 0.25
		100	$ 0.16
		500	$ 0.11
		1000	$ 0.09
	Tape & Reel (TR)	2000	$ 0.09
		6000	$ 0.08
		10000	$ 0.07
		50000	$ 0.06
		100000	$ 0.06

Description

General part information

APA1606 Series

Orange 601nm LED Indication - Discrete 2.1V 2-SMD, No Lead
