RJHSE5485

Active

Amphenol ICC (Commercial Products)

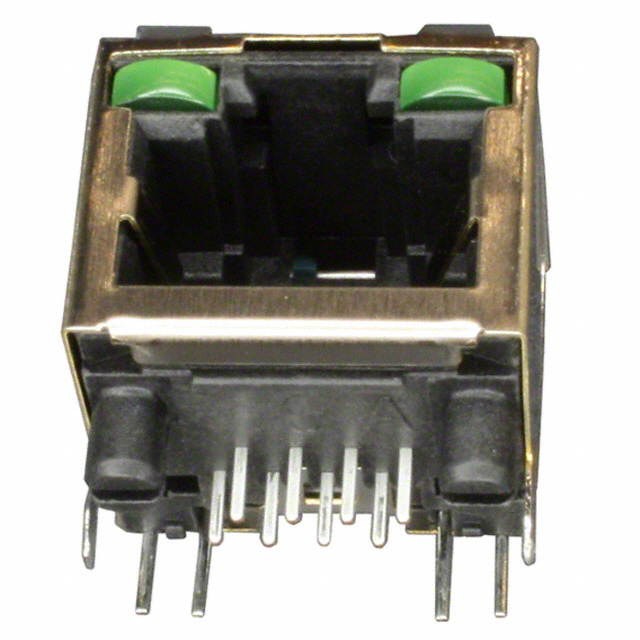

CONN MOD JACK 8P8C R/A SHLD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsRJHSE Series Brochure Datasheet

RJHSE5485

Active

Amphenol ICC (Commercial Products)

CONN MOD JACK 8P8C R/A SHLD

Deep-Dive with AI

DocumentsRJHSE Series Brochure Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	RJHSE5485

Connector Type	Jack
Contact Finish	Gold
Contact Finish Thickness	50 µin
Contact Finish Thickness	1.27 µm
Contact Material	Phosphor Bronze
Housing Material	Thermoplastic
LED Color	Green - Green
Mounting Type	Through Hole
Number of Ports	1
Number of Positions/Contacts	8p8c (RJ45, Ethernet)
Number of Rows	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Orientation	90 °
Shielding	Shielded, EMI Finger
Tab Direction	Up
Termination	Solder

RJHSE548 Series

Part	Number of Positions/Contacts	Tab Direction	Operating Temperature [Max]	Operating Temperature [Min]	Shielding	Contact Finish	Mounting Type	Contact Finish Thickness	Contact Finish Thickness	Number of Ports	Contact Material	Number of Rows	Connector Type	Termination	LED Color	Orientation	Housing Material
Amphenol ICC (Commercial Products) RJHSE548PA1	8p8c (RJ45 Ethernet)	Up	85 °C	-55 °C	Shielded EMI Finger	Gold	Through Hole	50 µin	1.27 µm	1	Phosphor Bronze	1	Jack	Solder	Green Green - Red	90 °	Thermoplastic
Amphenol ICC (Commercial Products) RJHSE548K	8p8c (RJ45 Ethernet)	Up	85 °C	-55 °C	Shielded EMI Finger	Gold	Through Hole	50 µin	1.27 µm	1	Phosphor Bronze	1	Jack	Solder	Orange Yellow - Green	90 °	Thermoplastic
Amphenol ICC (Commercial Products) RJHSE548NA1	8p8c (RJ45 Ethernet)	Up	85 °C	-55 °C	Shielded EMI Finger	Gold	Through Hole	50 µin	1.27 µm	1	Phosphor Bronze	1	Jack	Solder		90 °	Thermoplastic
Amphenol ICC (Commercial Products) RJHSE548G	8p8c (RJ45 Ethernet)	Up	85 °C	-55 °C	Shielded EMI Finger	Gold	Through Hole	50 µin	1.27 µm	1	Phosphor Bronze	1	Jack	Solder	Green Orange Orange - Green	90 °	Thermoplastic
Amphenol ICC (Commercial Products) RJHSE5481A1	8p8c (RJ45 Ethernet)	Up	85 °C	-55 °C	Shielded EMI Finger	Gold	Through Hole	50 µin	1.27 µm	1	Phosphor Bronze	1	Jack	Solder	Yellow - Green	90 °	Thermoplastic
Amphenol ICC (Commercial Products) RJHSE548D	8p8c (RJ45 Ethernet)	Up	85 °C	-55 °C	Shielded EMI Finger	Gold	Through Hole	50 µin	1.27 µm	1	Phosphor Bronze	1	Jack	Solder	Green - Green Yellow	90 °	Thermoplastic
Amphenol ICC (Commercial Products) RJHSE5485	8p8c (RJ45 Ethernet)	Up	85 °C	-55 °C	Shielded EMI Finger	Gold	Through Hole	50 µin	1.27 µm	1	Phosphor Bronze	1	Jack	Solder	Green - Green	90 °	Thermoplastic
Amphenol ICC (Commercial Products) RJHSE5484A1	8p8c (RJ45 Ethernet)	Up	85 °C	-55 °C	Shielded EMI Finger	Gold	Through Hole	50 µin	1.27 µm	1	Phosphor Bronze	1	Jack	Solder	Green Yellow	90 °	Thermoplastic
Amphenol ICC (Commercial Products) RJHSE548E	8p8c (RJ45 Ethernet)	Up	85 °C	-55 °C	Shielded EMI Finger	Gold	Through Hole	50 µin	1.27 µm	1	Phosphor Bronze	1	Jack	Solder	Yellow Yellow - Green	90 °	Thermoplastic
Amphenol ICC (Commercial Products) RJHSE548HA1	8p8c (RJ45 Ethernet)	Up	85 °C	-55 °C	Shielded EMI Finger	Gold	Through Hole	50 µin	1.27 µm	1	Phosphor Bronze	1	Jack	Solder	Green Yellow - Green	90 °	Thermoplastic
