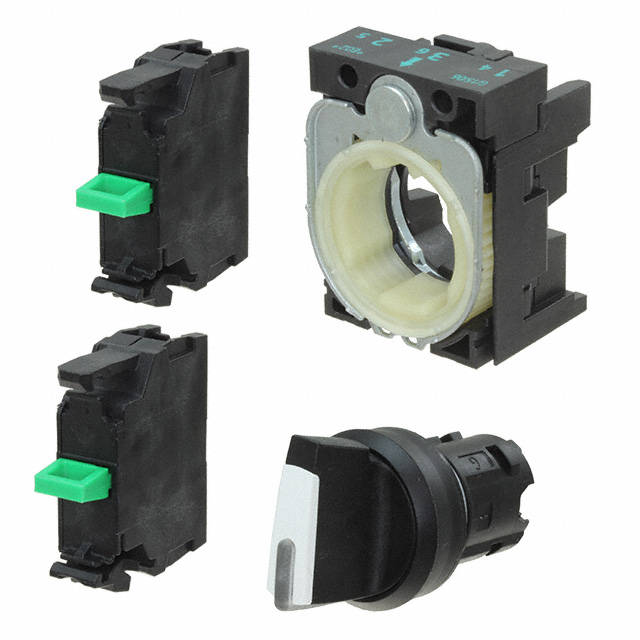

45-1819.1C90.003.108

Active

EAO

SWITCH SELECT 3POS DPST 10A 500V

Search across all available documentation for this part.

Active

EAO

SWITCH SELECT 3POS DPST 10A 500V

Technical Specifications

Parameters and characteristics for this part

Specification	45-1819.1C90.003.108

Approval Agency	UL, CSA, VDE, CCC, CE
Circuit	DPST-NO
Current Rating (Amps)	10 A
Illumination	Non-Illuminated
Ingress Protection	IP69K, IP67, IP66
Mechanical Life	1000000 Cycles
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-25 °C
Panel Cutout Dimensions [diameter]	22.3 mm
Switch Function	On-Off-On
Termination Style	Screw Terminal
Type	Standard
Voltage Rating - AC	500 V
Voltage Rating - DC	500 V

Part	Termination Style	Voltage Rating - AC	Switch Function	Type	Illumination	Panel Cutout Dimensions [diameter]	Circuit	Mechanical Life	Approval Agency	Ingress Protection	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating - DC	Current Rating (Amps)
EAO 45-1819.1C90.003.408	Spring Terminal	500 V	On-Off-On	Standard	Non-Illuminated	22.3 mm	DPST-NO	1000000 Cycles	CCC CE CSA UL VDE	IP66 IP67 IP69K	70 °C	-25 °C	500 V	10 A
EAO 45-1819.3C90.003.108	Screw Terminal	500 V	On-Off-On	Standard	Non-Illuminated	22.3 mm	DPST-NO	1000000 Cycles	CCC CE CSA UL VDE	IP66 IP67 IP69K	70 °C	-25 °C	500 V	10 A
EAO 45-1819.1C90.003.108	Screw Terminal	500 V	On-Off-On	Standard	Non-Illuminated	22.3 mm	DPST-NO	1000000 Cycles	CCC CE CSA UL VDE	IP66 IP67 IP69K	70 °C	-25 °C	500 V	10 A
EAO 45-1819.2C90.003.108	Screw Terminal	500 V	On-Off-On	Standard	Non-Illuminated	22.3 mm	DPST-NO	1000000 Cycles	CCC CE CSA UL VDE	IP66 IP67 IP69K	70 °C	-25 °C	500 V	10 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Selector Switch 3 Position DPST-NO 10A (AC/DC) 500 V Panel Mount
