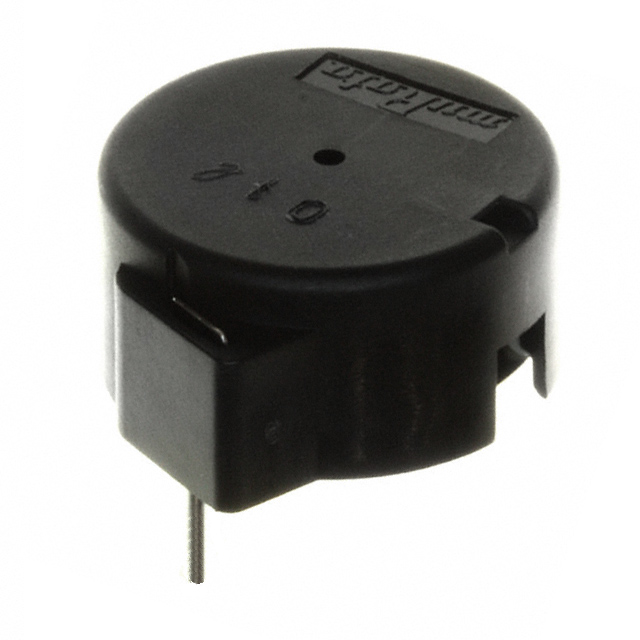

PKM22EPH2001

Obsolete

Murata Power Solutions Inc.

BUZZER PIEZO 1.5V 22MM TH

Search across all available documentation for this part.

Obsolete

Murata Power Solutions Inc.

BUZZER PIEZO 1.5V 22MM TH

Technical Specifications

Parameters and characteristics for this part

Specification	PKM22EPH2001

Driver Circuitry	Externally Driven, Transducer
Frequency	2 kHz
Height - Seated (Max) [Max]	0.453 "
Height - Seated (Max) [Max]	11.5 mm
Input Type	Zero-Peak Signal
Mounting Type	Through Hole
Operating Mode	Ringer
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 C
Port Location	Top
Size / Dimension [diameter]	22 mm
Size / Dimension [diameter]	0.866 in
Sound Pressure Level (SPL)	75 dB
Technology	Piezo
Termination	PC Pins
Voltage - Rated	1.5 VDC
Voltage Range [Max]	25 VDC

Part	Voltage - Rated	Mounting Type	Sound Pressure Level (SPL)	Size / Dimension [diameter]	Size / Dimension [diameter]	Driver Circuitry	Termination	Operating Mode	Port Location	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Input Type	Voltage Range [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Technology	Frequency
Murata Power Solutions Inc. PKM22EPH2001	1.5 VDC	Through Hole	75 dB	22 mm	0.866 in	Externally Driven Transducer	PC Pins	Ringer	Top	0.453 "	11.5 mm	Zero-Peak Signal	25 VDC	-20 C	70 °C	Piezo	2 kHz
Murata Power Solutions Inc. PKM22EPH2003		Through Hole	75 dB	22 mm	0.866 in	Externally Driven Transducer	PC Pins	Ringer	Top	0.453 "	11.5 mm	Zero-Peak Signal	25 VDC	-20 C	70 °C	Piezo	2 kHz

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Buzzers Transducer, Externally Driven Piezo 1.5 V 2kHz 75dB @ 1.5V, 10cm Through Hole PC Pins

Technical documentation and resources

No documents available
