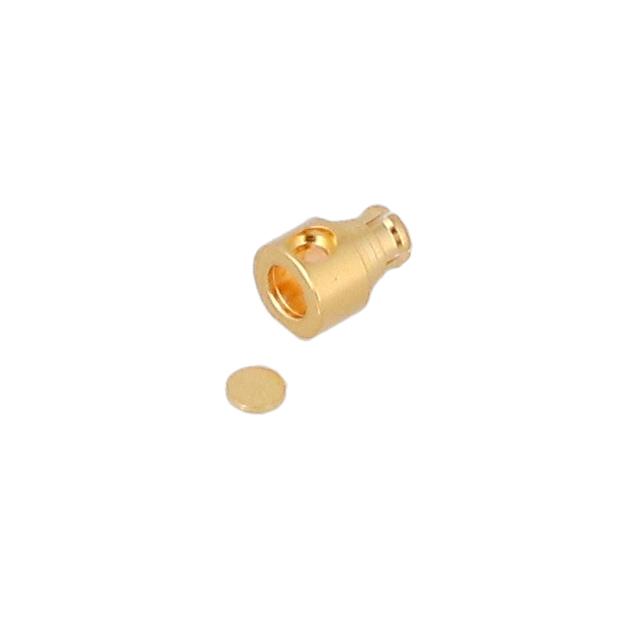

19K207-271L5

Active

Rosenberger

CONN SMP JACK R/A 50OHM SOLDER

Search across all available documentation for this part.

Active

Rosenberger

CONN SMP JACK R/A 50OHM SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	19K207-271L5

Body Finish	Gold
Body Material	Beryllium Copper
Cable Group	RG-405 (.085" Semi Rigid)
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Type	Female Socket, Jack
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max [Max]	26.5 GHz
Housing Color	Gold
Impedance	50 Ohms
Includes	1 End Cap, 1 Insulator, 1 Connector
Mounting Type	Free Hanging (In-Line), Right Angle
Number of Ports	1
Operating Temperature [Max]	155 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Solder
Voltage Rating	335 V

Part	Body Finish	Voltage Rating	Frequency - Max [Max]	Contact Termination	Includes	Fastening Type	Housing Color	Center Contact Plating	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Body Material	Shield Termination	Center Contact Material	Number of Ports	Impedance	Cable Group	Dielectric Material	Connector Type
Rosenberger 19K207-271L5	Gold	335 V	26.5 GHz	Solder	1 Connector 1 End Cap 1 Insulator	Snap-On	Gold	Gold	Free Hanging (In-Line) Right Angle	155 °C	-65 ░C	Beryllium Copper	Solder	Beryllium Copper	1	50 Ohms	RG-405 (.085" Semi Rigid)	Polytetrafluoroethylene (PTFE)	Female Socket Jack

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

SMP Connector Jack, Female Socket 50 Ohms Free Hanging (In-Line), Right Angle Solder
