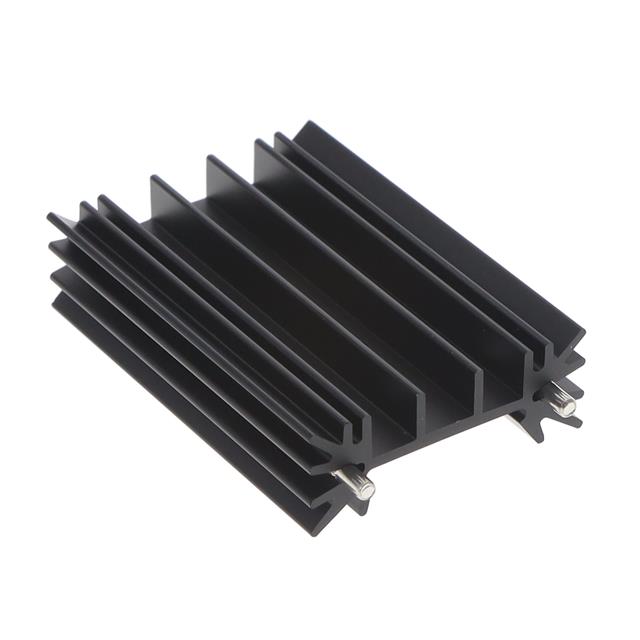

667-20ABPPE

Active

Wakefield-Vette

HEATSINK TO-220 W/S/O PINS BLK

Search across all available documentation for this part.

Active

Wakefield-Vette

HEATSINK TO-220 W/S/O PINS BLK

Technical Specifications

Parameters and characteristics for this part

Specification	667-20ABPPE

Attachment Method	PC Pin, Bolt On
Fin Height [z]	50.8 mm
Fin Height [z]	2 in
Length	0.5 in
Length	12.7 mm
Material	Aluminum
Material Finish	Black Anodized
Package Cooled	TO-220
Power Dissipation @ Temperature Rise	6 W, 58 °C
Shape	Rectangular, Fins
Thermal Resistance @ Forced Air Flow	4.7 °C/W, 200 LFM
Type	Board Level, Vertical
Width	34.93 mm
Width	1.375 "

Part	Material Finish	Material	Type	Attachment Method	Power Dissipation @ Temperature Rise	Shape	Thermal Resistance @ Forced Air Flow	Width	Width	Fin Height [z]	Fin Height [z]	Length	Length	Package Cooled
Wakefield-Vette 667-20ABPPE	Black Anodized	Aluminum	Board Level Vertical	Bolt On PC Pin	6 W 58 °C	Rectangular Fins	4.7 °C/W 200 LFM	34.93 mm	1.375 "	50.8 mm	2 in	0.5 in	12.7 mm	TO-220

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Heat Sink TO-220 Aluminum 6.0W @ 58°C Board Level, Vertical
