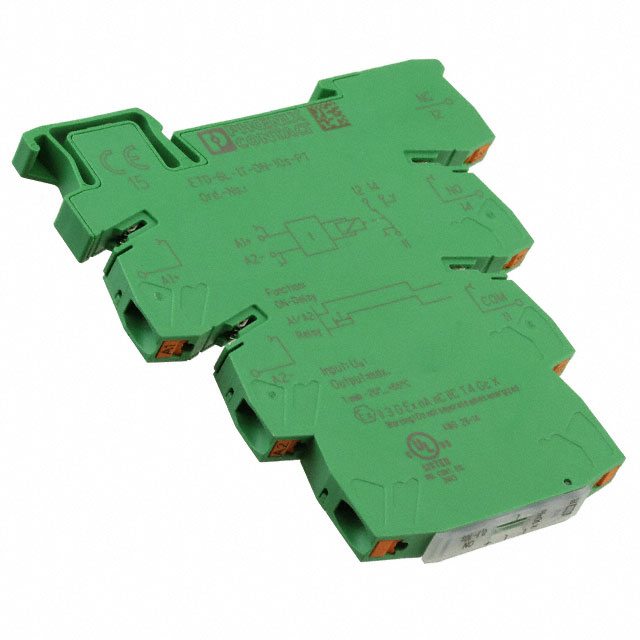

2901476

Obsolete

Phoenix Contact

RELAY TIME DELAY 10SEC 6A 250V

Search across all available documentation for this part.

Obsolete

Phoenix Contact

RELAY TIME DELAY 10SEC 6A 250V

Technical Specifications

Parameters and characteristics for this part

Part	Delay Time [Min]	Delay Time [Max]	Function	Relay Type	Termination Style	Timing Initiate Method	Mounting Type	Contact Rating @ Voltage	Voltage - Supply	Timing Adjustment Method
Phoenix Contact 2901481	3 Sec	300 Sec	On-Delay	Mechanical Relay	Spring Terminal	Input Voltage	DIN Rail	6 A 250 VAC	24 VDC	Screwdriver Slot
Phoenix Contact 2901487	0.3 Min	30 Min	Off-Delay	Mechanical Relay	Spring Terminal	Input Voltage	DIN Rail	6 A 250 VAC	24 VDC	Screwdriver Slot
Phoenix Contact 2901485	0.1 Sec	10 s	Off-Delay	Mechanical Relay	Spring Terminal	Input Voltage	DIN Rail	6 A 250 VAC	24 VDC	Screwdriver Slot
Phoenix Contact 2901479	3 Cyc	300 Min	On-Delay	Mechanical Relay	Spring Terminal	Input Voltage	DIN Rail	6 A 250 VAC	24 VDC	Screwdriver Slot
Phoenix Contact 2901476	0.1 Sec	10 s	On-Delay	Mechanical Relay	Spring Terminal	Input Voltage	DIN Rail	6 A 250 VAC	24 VDC	Screwdriver Slot
Phoenix Contact 2901491	0.3 Min	30 Min	Repeat Cycle	Mechanical Relay	Spring Terminal	Input Voltage	DIN Rail	6 A 250 VAC	24 VDC	Screwdriver Slot
Phoenix Contact 2901488	3 Cyc	300 Min	Off-Delay	Mechanical Relay	Spring Terminal	Input Voltage	DIN Rail	6 A 250 VAC	24 VDC	Screwdriver Slot
Phoenix Contact 2901492	3 Cyc	300 Min	Repeat Cycle	Mechanical Relay	Spring Terminal	Input Voltage	DIN Rail	6 A 250 VAC	24 VDC	Screwdriver Slot
Phoenix Contact 2901483	0.3 Min	30 Min	On-Delay	Mechanical Relay	Spring Terminal	Input Voltage	DIN Rail	6 A 250 VAC	24 VDC	Screwdriver Slot

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

On-Delay Time Delay Relay SPDT (1 Form C) 0.1 Sec ~ 10 Sec Delay 6A @ 250VAC DIN Rail
