89013.35.05

Active

Prysmian Group

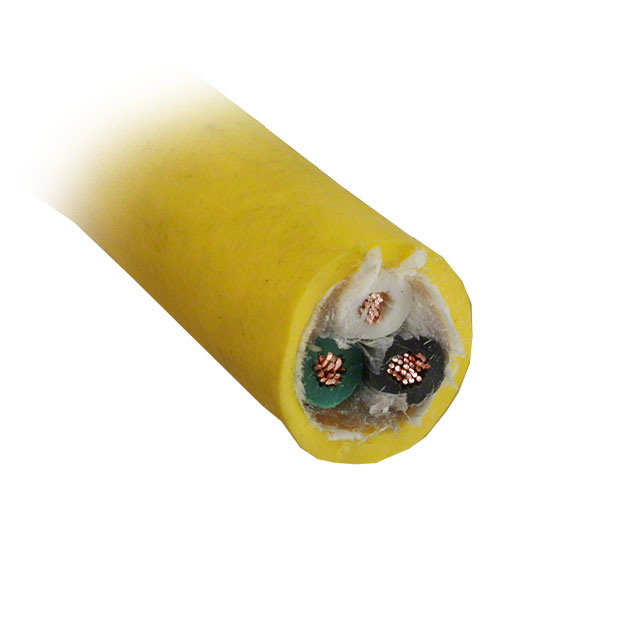

CABLE 3COND 16AWG YELLOW

Deep-Dive with AI

Search across all available documentation for this part.

89013.35.05

Active

Prysmian Group

CABLE 3COND 16AWG YELLOW

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	89013.35.05

Cable Type	Multi-Conductor
Conductor Insulation	Thermoplastic Elastomer (TPE)
Conductor Material	Copper, Bare
Conductor Strand [custom]	30 AWG
Conductor Strand [custom]	26
Features	Oil Resistant
Jacket (Insulation) Diameter [diameter]	8.59 mm
Jacket (Insulation) Diameter [diameter]	0.338 in
Jacket (Insulation) Material	Thermoplastic Elastomer (TPE)
Jacket (Insulation) Thickness	0.762 mm
Jacket (Insulation) Thickness	0.03 in
Jacket Color	Yellow
Length	3000 "
Length	76.2 m
Length [x]	30.5 m, 7.62 m
Length [x]	100 ft, 25 ft
Number of Conductors	3
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-50 °C
Usage	Cord and Cordset
Voltage	300 V
Wire Gauge	16 AWG

89013 Series

Part	Voltage	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Cable Type	Jacket (Insulation) Material	Features	Operating Temperature [Min]	Operating Temperature [Max]	Number of Conductors	Wire Gauge	Conductor Strand [custom]	Conductor Strand [custom]	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Conductor Insulation	Conductor Material	Length [x]	Length [x]	Usage	Length	Length	Jacket Color
Prysmian Group 89013.XX.02	300 V	8.59 mm	0.338 in	Multi-Conductor	Thermoplastic Elastomer (TPE)	Oil Resistant	-50 °C	105 ░C	3	16 AWG	30 AWG	26	0.762 mm	0.03 in	Thermoplastic Elastomer (TPE)	Copper Annealed Bare
Prysmian Group 89013.35.05	300 V	8.59 mm	0.338 in	Multi-Conductor	Thermoplastic Elastomer (TPE)	Oil Resistant	-50 °C	105 ░C	3	16 AWG	30 AWG	26	0.762 mm	0.03 in	Thermoplastic Elastomer (TPE)	Copper Bare	7.62 m 30.5 m	25 ft 100 ft	Cord and Cordset	3000 "	76.2 m	Yellow
Prysmian Group 89013.41.02	300 V	8.59 mm	0.338 in	Multi-Conductor	Thermoplastic Elastomer (TPE)	Oil Resistant	-50 °C	105 ░C	3	16 AWG	30 AWG	26	0.762 mm	0.03 in	Thermoplastic Elastomer (TPE)	Copper Annealed Bare				1000 ft	304.8 m
Prysmian Group 89013.35.01	300 V	8.59 mm	0.338 in	Multi-Conductor	Thermoplastic Elastomer (TPE)	Oil Resistant	-50 °C	105 ░C	3	16 AWG	30 AWG	26	0.762 mm	0.03 in	Thermoplastic Elastomer (TPE)	Copper Bare	7.62 m 30.5 m	25 ft 50 ft 100 ft	Cord and Cordset	10 ft 3000 "	3.05 m 15.24 m 76.2 m	Black
Prysmian Group 89013.41.01	300 V	8.59 mm	0.338 in	Multi-Conductor	Thermoplastic Elastomer (TPE)	Oil Resistant	-50 °C	105 ░C	3	16 AWG	30 AWG	26	0.762 mm	0.03 in	Thermoplastic Elastomer (TPE)	Copper Annealed Bare				1000 ft	304.8 m	Black
Prysmian Group 89013.XX.01	300 V	8.59 mm	0.338 in	Multi-Conductor	Thermoplastic Elastomer (TPE)	Oil Resistant	-50 °C	105 ░C	3	16 AWG	30 AWG	26	0.762 mm	0.03 in	Thermoplastic Elastomer (TPE)	Copper Annealed Bare						Black
Prysmian Group 89013.46.02	300 V	8.59 mm	0.338 in	Multi-Conductor	Thermoplastic Elastomer (TPE)	Oil Resistant	-50 °C	105 ░C	3	16 AWG	30 AWG	26	0.762 mm	0.03 in	Thermoplastic Elastomer (TPE)	Copper Annealed Bare

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 47.62
		1	$ 180.06
		5	$ 147.32
		5	$ 38.96
		10	$ 114.58
		10	$ 30.30
	Spool	250	$ 0.94
		500	$ 0.90
		1250	$ 0.85
		2500	$ 0.80
		6250	$ 0.76
		12500	$ 0.74

Description

General part information

89013 Series

3 Conductor Multi-Conductor Cable Yellow 16 AWG 250.0' (76.2m)
