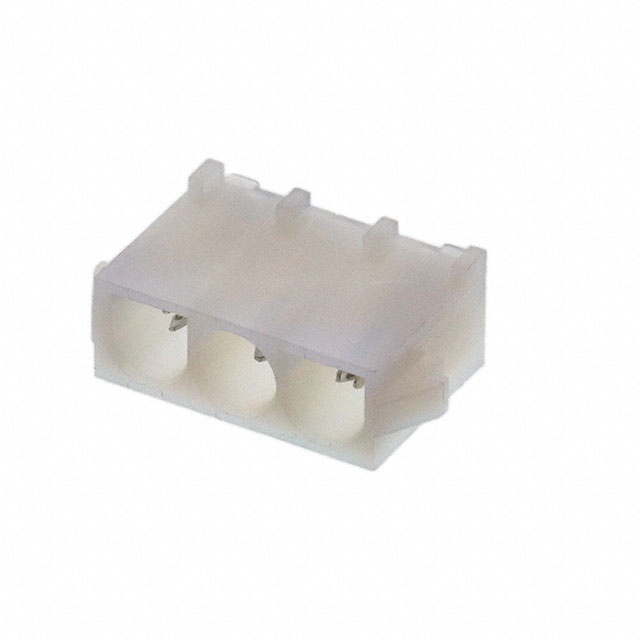

DME-03-S-S

Active

Adam Tech

6.35MM PCB HEADER, 3 POSITION

Search across all available documentation for this part.

Active

Adam Tech

6.35MM PCB HEADER, 3 POSITION

Technical Specifications

Parameters and characteristics for this part

Specification	DME-03-S-S

Applications	General Purpose
Connector Type	Receptacle
Contact Finish - Post	Tin
Contact Length - Post	0.177 in
Contact Length - Post	4.5 mm
Contact Material	Brass
Contact Shape	Circular
Contact Type	Female Socket
Current Rating (Amps)	13 A
Fastening Type	Locking Ramp
Insulation Color	Natural
Insulation Height	0.55 in
Insulation Height	13.97 mm
Insulation Material	Polyamide (PA66), Nylon 6/6
Material Flammability Rating	UL94 V-2
Mounting Type	Through Hole
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Pitch - Mating	6.35 mm
Pitch - Mating	0.25 in
Termination	Solder
Voltage Rating	600 VAC

Part	Contact Type	Connector Type	Number of Positions Loaded	Insulation Height	Insulation Height	Insulation Material	Current Rating (Amps)	Contact Material	Mounting Type	Insulation Color	Contact Finish - Post	Voltage Rating	Fastening Type	Material Flammability Rating	Operating Temperature [Min]	Operating Temperature [Max]	Pitch - Mating	Pitch - Mating	Contact Length - Post	Contact Length - Post	Applications	Number of Rows	Contact Shape	Termination
Adam Tech DME-03-S-S	Female Socket	Receptacle	All	0.55 in	13.97 mm	Polyamide (PA66) Nylon 6/6	13 A	Brass	Through Hole	Natural	Tin	600 VAC	Locking Ramp	UL94 V-2	-25 °C	85 °C	6.35 mm	0.25 in	0.177 in	4.5 mm	General Purpose	1	Circular	Solder
