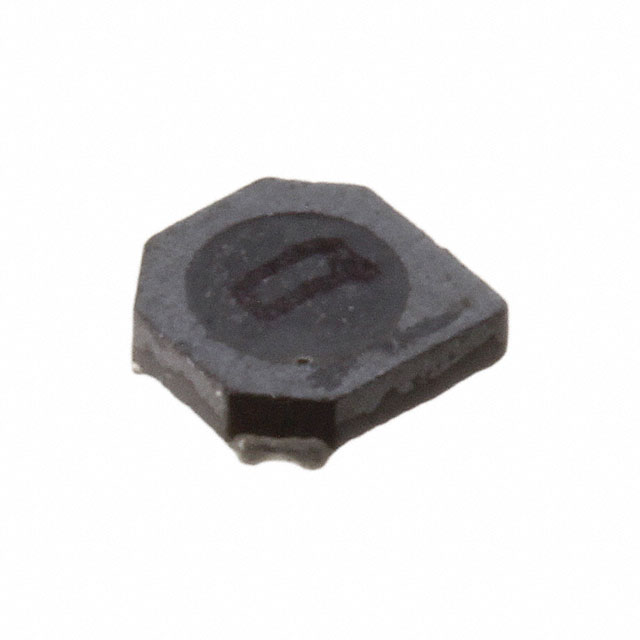

SRU3011-1R5Y

Active

Bourns Inc.

IND3.3X3.5X1.1MM,1.5UH30%1.1A,SHDSMD /TAPE & REEL - 7" REEL ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

Bourns Inc.

IND3.3X3.5X1.1MM,1.5UH30%1.1A,SHDSMD /TAPE & REEL - 7" REEL ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Part	Inductance Frequency - Test	Shielding	DC Resistance (DCR)	Current - Saturation (Isat)	Mounting Type	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Inductance	Q @ Freq	Type	Package / Case	Tolerance	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Frequency - Self Resonant	Material - Core	Current Rating (Amps)	Operating Temperature [Max]	Operating Temperature [Min]
Bourns Inc. SRU3011-6R8Y	100 kHz	Shielded	245 mOhm	460 mA	Surface Mount	1.2 mm	0.047 in	6.8 µH	7 7.96 MHz	Drum Core Wirewound	Nonstandard	30 %	3.3 mm	3.5 mm	0.13 in	0.138 "	85 MHz	Ferrite	0.5 A	125 °C	-40 °C
Bourns Inc. SRU3011-100Y	100 kHz	Shielded	340 mOhm	350 mA	Surface Mount	1.2 mm	0.047 in	10 µH	2.52 MHz 8	Drum Core Wirewound	Nonstandard	30 %	3.3 mm	3.5 mm	0.13 in	0.138 "	60 MHz	Ferrite	400 mA	125 °C	-40 °C
Bourns Inc. SRU3011-1R5Y	100 kHz	Shielded	57 mOhm	1 A	Surface Mount	1.2 mm	0.047 in	1.5 µH	7 7.96 MHz	Drum Core Wirewound	Nonstandard	30 %	3.3 mm	3.5 mm	0.13 in	0.138 "	180 MHz	Ferrite	1.1 A	125 °C	-40 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

1.5 µH Shielded Drum Core, Wirewound Inductor 1.1 A 57mOhm Nonstandard
