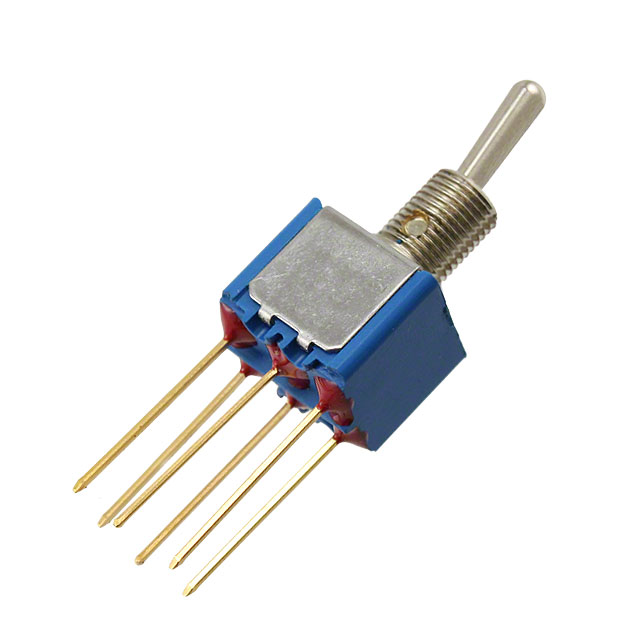

5242MIWRADBX449

Active

APEM

SWITCH TOGGLE DPDT 6A 125V

Search across all available documentation for this part.

Active

APEM

SWITCH TOGGLE DPDT 6A 125V

Technical Specifications

Parameters and characteristics for this part

Specification	5242MIWRADBX449

Actuator Material	Brass, Nickel Plated
Actuator Type	Standard Round
Bushing Thread	1/4-40
Circuit	DPDT
Current Rating (Amps)	4 A, 6 A
Electrical Life	50000 Cycles
Features	Epoxy Sealed Terminals
Illumination	Non-Illuminated
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Panel Cutout Dimensions [diameter]	6.5 mm
Switch Function	On-Mom
Termination Style	Wire Wrap
Voltage Rating - AC	125 V
Voltage Rating - DC	30 V

Part	Features	Termination Style	Actuator Material	Current Rating (Amps)	Voltage Rating - AC	Operating Temperature [Max]	Operating Temperature [Min]	Switch Function	Bushing Thread	Electrical Life	Illumination	Circuit	Panel Cutout Dimensions [diameter]	Voltage Rating - DC	Actuator Type
APEM 5242MIWRADBX449	Epoxy Sealed Terminals	Wire Wrap	Brass Nickel Plated	4 A 6 A	125 V	85 °C	-40 °C	On-Mom	1/4-40	50000 Cycles	Non-Illuminated	DPDT	6.5 mm	30 V	Standard Round

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Toggle Switch DPDT Panel Mount
