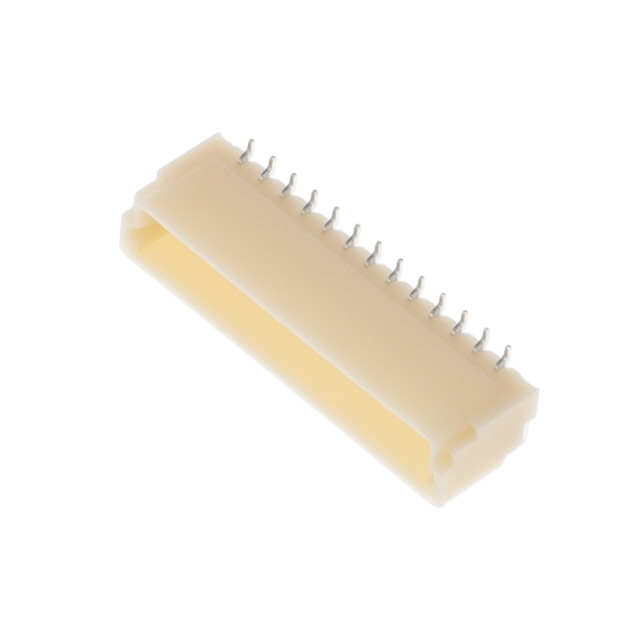

BM13B-SRSS-TBT

Active

JST Sales America Inc.

CONN HEADER SMD 13POS 1MM

Search across all available documentation for this part.

Active

JST Sales America Inc.

CONN HEADER SMD 13POS 1MM

Technical Specifications

Parameters and characteristics for this part

Specification	BM13B-SRSS-TBT

Connector Type	Header
Contact Finish - Post	Tin
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Push-Pull
Features	Pick and Place, Solder Retention
Insulation Color	Natural
Insulation Height	0.167 in
Insulation Height	4.25 mm
Insulation Material	Polyamide (PA), Nylon
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	13
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Pitch - Mating	0.039 in
Pitch - Mating	1 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	50 V

Part	Contact Shape	Shrouding	Insulation Color	Features	Termination	Contact Type	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish - Post	Voltage Rating	Insulation Material	Connector Type	Number of Positions	Style	Pitch - Mating	Pitch - Mating	Fastening Type	Material Flammability Rating	Number of Rows	Mounting Type	Insulation Height	Insulation Height	Contact Material	Number of Positions Loaded
JST Sales America Inc. BM13B-SRSS-TBT	Square	Shrouded - 4 Wall	Natural	Pick and Place Solder Retention	Solder	Male Pin	-25 °C	85 °C	Tin	50 V	Nylon Polyamide (PA)	Header	13	Board to Cable/Wire	0.039 in	1 mm	Push-Pull	UL94 V-0	1	Surface Mount	0.167 in	4.25 mm	Copper Alloy	All
JST Sales America Inc. BM13B-SRSS-TB	Square	Shrouded - 4 Wall	Natural	Solder Retention	Solder	Male Pin	-25 °C	85 °C	Tin	50 V	Nylon Polyamide (PA)	Header	13	Board to Cable/Wire	0.039 in	1 mm	Push-Pull	UL94 V-0	1	Surface Mount	0.167 in	4.25 mm	Copper Alloy	All

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector Header Surface Mount 13 position 0.039" (1.00mm)
