833-050-555-202
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 50POS 0.156
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
833-050-555-202
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 50POS 0.156
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 833-050-555-202 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Features | Card Extender |
| Flange Feature | Flush Mount, Top Opening, Unthreaded |
| Flange Feature [diameter] | 3.25 mm |
| Flange Feature [diameter] | 0.128 " |
| Gender | Female |
| Material - Insulation | Diallyl Phthalate (DAP) |
| Mounting Type | Board Edge, Straddle Mount |
| Number of Positions | 50 |
| Number of Positions/Bay/Row [custom] | 25 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.156 in |
| Pitch [x] | 3.96 mm |
| Read Out | Dual |
| Termination | Solder |
| Termination Rows | 2 |
833-050 Series
...
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Number of Rows | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Read Out | Contact Type | Gender | Number of Positions/Bay/Row [custom] | Contact Finish Thickness | Contact Finish Thickness | Contact Finish | Termination Rows | Mounting Type | Card Type | Number of Positions | Color | Material - Insulation | Termination | Pitch [x] | Pitch [x] | Contact Material | Flange Feature | Features | Flange Feature [diameter] | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | 125 °C | -40 °C | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Dual | Cantilever | Female | 25 | 10 Áin | 0.25 Ám | Gold | 2 | Through Hole | Non Specified - Dual Edge | 50 | Green | Diallyl Phthalate (DAP) | Wire Wrap | 0.156 in | 3.96 mm | Copper Alloy | ||||
EDAC Inc. | 125 °C | -40 °C | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Dual | Cantilever | Female | 25 | 10 Áin | 0.25 Ám | Gold | 2 | Board Edge Straddle Mount | Non Specified - Dual Edge | 50 | Green | Diallyl Phthalate (DAP) | Solder | 0.156 in | 3.96 mm | Copper Alloy | M3 Threaded Insert Top Mount Opening | Card Extender | ||
EDAC Inc. | 125 °C | -40 °C | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Dual | Cantilever | Female | 25 | 10 Áin | 0.25 Ám | Gold | 2 | Through Hole | Non Specified - Dual Edge | 50 | Green | Diallyl Phthalate (DAP) | Wire Wrap | 0.156 in | 3.96 mm | Copper Alloy | 4-40 Threaded Insert Top Mount Opening | |||
EDAC Inc. | 125 °C | -40 °C | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Dual | Cantilever | Female | 25 | 10 Áin | 0.25 Ám | Gold | 2 | Board Edge Straddle Mount | Non Specified - Dual Edge | 50 | Green | Diallyl Phthalate (DAP) | Solder | 0.156 in | 3.96 mm | Copper Alloy | Flush Mount Top Opening Unthreaded | Card Extender | 3.25 mm | 0.128 " |
EDAC Inc. | 125 °C | -40 °C | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Dual | Cantilever | Female | 25 | 10 Áin | 0.25 Ám | Gold | 2 | Through Hole | Non Specified - Dual Edge | 50 | Green | Diallyl Phthalate (DAP) | Wire Wrap | 0.156 in | 3.96 mm | Copper Alloy | Flush Mount Top Opening Unthreaded | 3.25 mm | 0.128 " | |
EDAC Inc. | 125 °C | -40 °C | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Dual | Cantilever | Female | 25 | 10 Áin | 0.25 Ám | Gold | 2 | Through Hole Right Angle | Non Specified - Dual Edge | 50 | Green | Diallyl Phthalate (DAP) | Solder | 0.156 in | 3.96 mm | Copper Alloy | Top Mount Opening Unthreaded | 3.96 mm | 0.156 in | |
EDAC Inc. | 125 °C | -40 °C | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Dual | Cantilever | Female | 25 | 10 Áin | 0.25 Ám | Gold | 2 | Board Edge Straddle Mount | Non Specified - Dual Edge | 50 | Green | Diallyl Phthalate (DAP) | Solder | 0.156 in | 3.96 mm | Copper Alloy | Flush Mount Top Opening Unthreaded | Card Extender | 3.96 mm | 0.156 in |
EDAC Inc. | 125 °C | -40 °C | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Dual | Cantilever | Female | 25 | 10 Áin | 0.25 Ám | Gold | 2 | Through Hole | Non Specified - Dual Edge | 50 | Green | Diallyl Phthalate (DAP) | Solder | 0.156 in | 3.96 mm | Copper Alloy | M3 Threaded Insert Top Mount Opening | |||
EDAC Inc. | 125 °C | -40 °C | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Dual | Cantilever | Female | 25 | 10 Áin | 0.25 Ám | Gold | 2 | Board Edge Straddle Mount | Non Specified - Dual Edge | 50 | Green | Diallyl Phthalate (DAP) | Solder | 0.156 in | 3.96 mm | Copper Alloy | Flush Mount M3 Threaded Insert Top Opening | Card Extender | ||
EDAC Inc. | 125 °C | -40 °C | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Dual | Cantilever | Female | 25 | 10 Áin | 0.25 Ám | Gold | 2 | Through Hole | Non Specified - Dual Edge | 50 | Green | Diallyl Phthalate (DAP) | Solder | 0.156 in | 3.96 mm | Copper Alloy | Top Mount Opening Unthreaded | 3.96 mm | 0.156 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
833-050 Series

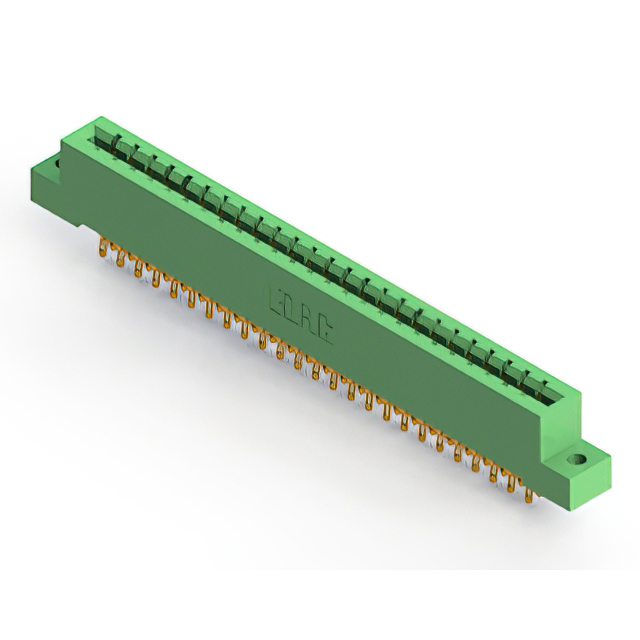

50 Position Female Connector Non Specified - Dual Edge Gold 0.156" (3.96mm) Green
